C10 Valve
The standard C10 valve is used on corrosive and non-corrosive cylinders. The valve is manufactured in brass and stainless steel.
It’s available in both types i.e. for refillable and non-refillable cylinders.
SPECIFICATIONS
Inlet Pressure:
90 bar
Inlet Connection:
1/14” UNS
Outlet Connection:
5/18″ UNF-F
Material:
Brass or stainless steel
Warranty:
1 year
Related products

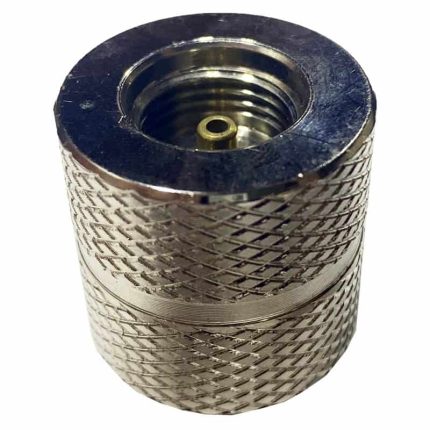

CGA 600 Adapter
The CGA 600 Adapter is used on non-reactive gas cylinders for connecting Fixed Flow regulators, Demand Flow Regulators, Trigger Regulators, Push button Regulators and Multi Flow Regulators.
Adapts the any Litre-bottle male thread connection (CGA600) to the any litre-bottle/regulator female thread connection (C10).
SPECIFICATIONS
Inlet Pressure:
90 bar max
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
1”/20 UNEF-F
Material:
Brass or Stainless Steel
Warranty:
1 Year
High Pressure Fixed Flow Regulator
It is compatible with all gas cylinders with standard C10 connections and is available in variety outlet flows and can be used with gas mixture in disposable cylinders.
SPECIFICATIONS
Inlet Pressure:
200 bar
Outlet Flow:
0.3 to 7 L/Mn at 4 bar pressure
Inlet Connection:
1/4“ NPT F for the high Pressure
Outlet Connection:
1/4“ NPT F for the high Pressure
Material:
Brass & Stainless Steel
Warranty:
1 year
Fixed Flow Regulator
Fixed Flow Regulator is manufactured to give various fixed flow rates and is compatible with all gas cylinders with a C10 connection.
It is one of the most common regulators used in the world of gas Calibration and comes with a wide range of flows that are set as per your need.
Suitable for Oxygen as all parts are made of Brass and range from 0.5 L/Mn to 25 L/Mn.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn to 25.0 L/Mn
Inlet Connection:
C10 ( 5/8″ x 18 UNF -M )
Outlet Connection:
Barbed connection
Material:
Brass / Stainless Steel
Warranty:
1 year

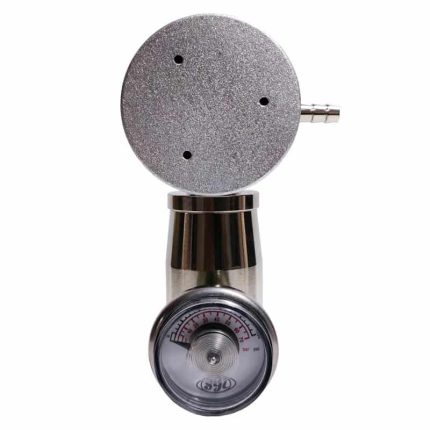

Standard Demand Flow Regulator
Demand Flow Regulator is used mainly for docking stations and regulator is set to open only under vacuum of 3-inch water column which gives a flow rate of 0-3 L/Mn.
The regulator comes in both standard C10 connection and High-Pressure NPT connection.
SPECIFICATIONS
Inlet Pressure:
70 bar or 200 bar
Outlet Flow:
0-3 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M or 1/4“ NPT F for the high Pressure
Outlet Connection:
Barbed Outlet
Material:
Brass or Stainless Steel
Warranty:
1 year
Hybrid Fixed Flow Regulator
The Hybrid type Fixed flow regulator comes with unique design that can be used with disposable cylinders filled with reactive gases.
It comprises of an aluminium cap and stainless-steel body which can be used for corrosive gasses. The aluminium cap contributes to reduction in weight and size of the regulator.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.3 to 7 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
Barbed connection
Material:
Stainless Steel (Body) & Aluminium (Cap)
Warranty:
1 year

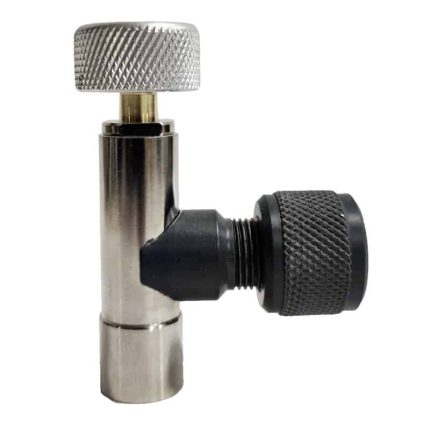

Septum Flow Valve
The Septum Flow Valve is used with gas cylinders for extraction of specific amount of gas. The septum holds the gas once the valve is turned on and once turned off the required amount of gas can be removed with the help of a syringe.
This also helps is preventing accidental loss of gas.
SPECIFICATIONS
Inlet Pressure:
35 bar
Inlet Connection:
C10-5/8” x 18 UNF-M or Aerosol
Outlet Connection:
Septum Outlet
Material:
Brass
Warranty:
1 year
