Fixed Flow Regulator
Fixed Flow Regulator is manufactured to give various fixed flow rates and is compatible with all gas cylinders with a C10 connection.
It is one of the most common regulators used in the world of gas Calibration and comes with a wide range of flows that are set as per your need.
Suitable for Oxygen as all parts are made of Brass and range from 0.5 L/Mn to 25 L/Mn.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn to 25.0 L/Mn
Inlet Connection:
C10 ( 5/8″ x 18 UNF -M )
Outlet Connection:
Barbed connection
Material:
Brass / Stainless Steel
Warranty:
1 year
Related products
Mini Flow C10 Valve
It is used with the 20 litre mini gas cylinder.
Designed with a simple on/off valve the gas flow is regulated through a Rotameter.
SPECIFICATIONS
Inlet Pressure:
35 bar
Outlet Flow:
0 to 1 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M or CGA 600 or Aerosol
Outlet Connection:
Barbed Outlet
Material:
Brass
Warranty:
1 year

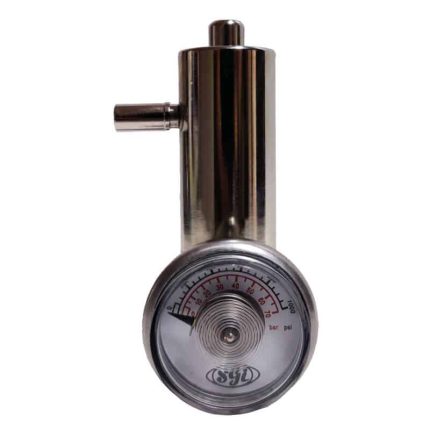

Push Button Fixed Flow Regulator
Push Button Regulator comes with a ON/OFF button on its top as preventive measure for accidental loss of gas and is mainly used for Bump Testing.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn & 1.0 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
Taper Shank Adaptable to Polyurethane Tube
Material:
Brass & Stainless Steel
Warranty:
1 year
CGA 600 Adapter
The CGA 600 Adapter is used on non-reactive gas cylinders for connecting Fixed Flow regulators, Demand Flow Regulators, Trigger Regulators, Push button Regulators and Multi Flow Regulators.
Adapts the any Litre-bottle male thread connection (CGA600) to the any litre-bottle/regulator female thread connection (C10).
SPECIFICATIONS
Inlet Pressure:
90 bar max
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
1”/20 UNEF-F
Material:
Brass or Stainless Steel
Warranty:
1 Year
Combination Regulator
Combination Regulator is compatible with standard C10 connection refillable cylinders. The unique design of this regulator allows it to act like a valve and regulator when needed.
It consists of ON/OFF knob with pressure gauge to determine the cylinder volume and a gas refiling port on top on of the regulator.
SPECIFICATIONS
Inlet Pressure:
100 bar
Outlet Flow:
0.1 to 7 L/Mn
Inlet Connection:
1/14” UNS
Outlet Connection:
Barbed Outlet
Material:
Aluminium
Warranty:
1 year
S Flow Regulator
An Economical Alternative to the fixed flow regulator and comes with adjustable flow rates.
The S-Flow regulator comes with ON/OFF knob and a rotameter to indicate flow rates.
SPECIFICATIONS
Inlet Pressure:
70 bar or 35 bar
Outlet Flow:
0.25L/Mn, 0.5 L/Mn, 0.75L/Mn, 1.0 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M or Aerosol
Outlet Connection:
Barbed Outlet
Material:
Brass
Warranty:
1 year
Septum Flow Valve
The Septum Flow Valve is used with gas cylinders for extraction of specific amount of gas. The septum holds the gas once the valve is turned on and once turned off the required amount of gas can be removed with the help of a syringe.
This also helps is preventing accidental loss of gas.
SPECIFICATIONS
Inlet Pressure:
35 bar
Inlet Connection:
C10-5/8” x 18 UNF-M or Aerosol
Outlet Connection:
Septum Outlet
Material:
Brass
Warranty:
1 year
