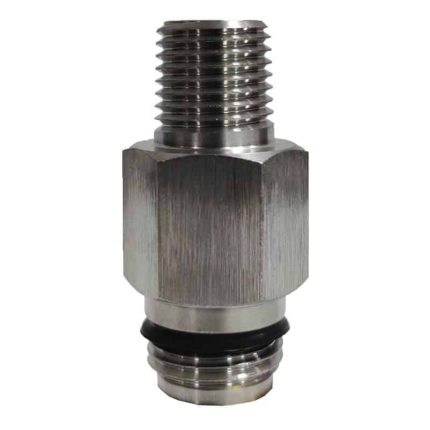

Fixed Flow Regulator NPT
Fixed Flow Regulator is manufactured to give various fixed flow rates and is compatible with all gas cylinders with a NPT connection.
SPECIFICATIONS
Inlet Pressure:
200 bar
Outlet Flow:
0.5 L/Mn & 1.0 L/Mn
Inlet Connection:
1/4“ NPT F
Outlet Connection:
Barbed connection
Material:
Stainless Steel
Warranty:
1 year
Related products
CGA 600 Valve
Bump Test Fixed Flow Regulator
Bump test is a functional test of a gas monitor.
This regulator is used for calibration and working of Bump test for known quantity gas.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
1/8” BSP or NPT-F
Material:
Brass
Warranty:
1 year
Trigger Fixed Flow Regulator
The trigger regulator is designed to provide aerosol capability, this regulator can be used with 34L and 58L aluminium cylinders.
The trigger can be used for dispensing gas at flow rate of 0.5L/Mn. And can be flipped upwards into on position for continuous flow of gas.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
6mm Straight tube
Material:
Brass
Warranty:
1 year
Standard Demand Flow Regulator
Demand Flow Regulator is used mainly for docking stations and regulator is set to open only under vacuum of 3-inch water column which gives a flow rate of 0-3 L/Mn.
The regulator comes in both standard C10 connection and High-Pressure NPT connection.
SPECIFICATIONS
Inlet Pressure:
70 bar or 200 bar
Outlet Flow:
0-3 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M or 1/4“ NPT F for the high Pressure
Outlet Connection:
Barbed Outlet
Material:
Brass or Stainless Steel
Warranty:
1 year
Hybrid Fixed Flow Regulator
The Hybrid type Fixed flow regulator comes with unique design that can be used with disposable cylinders filled with reactive gases.
It comprises of an aluminium cap and stainless-steel body which can be used for corrosive gasses. The aluminium cap contributes to reduction in weight and size of the regulator.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.3 to 7 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
Barbed connection
Material:
Stainless Steel (Body) & Aluminium (Cap)
Warranty:
1 year
CGA 600 Adapter
The CGA 600 Adapter is used on non-reactive gas cylinders for connecting Fixed Flow regulators, Demand Flow Regulators, Trigger Regulators, Push button Regulators and Multi Flow Regulators.
Adapts the any Litre-bottle male thread connection (CGA600) to the any litre-bottle/regulator female thread connection (C10).
SPECIFICATIONS
Inlet Pressure:
90 bar max
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
1”/20 UNEF-F
Material:
Brass or Stainless Steel
Warranty:
1 Year
High Pressure Fixed Flow Regulator
It is compatible with all gas cylinders with standard C10 connections and is available in variety outlet flows and can be used with gas mixture in disposable cylinders.
SPECIFICATIONS
Inlet Pressure:
200 bar
Outlet Flow:
0.3 to 7 L/Mn at 4 bar pressure
Inlet Connection:
1/4“ NPT F for the high Pressure
Outlet Connection:
1/4“ NPT F for the high Pressure
Material:
Brass & Stainless Steel
Warranty:
1 year
Push Button Fixed Flow Regulator
Push Button Regulator comes with a ON/OFF button on its top as preventive measure for accidental loss of gas and is mainly used for Bump Testing.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn & 1.0 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
Taper Shank Adaptable to Polyurethane Tube
Material:
Brass & Stainless Steel
Warranty:
1 year
