MBr KwikAlert

MBr KwikAlert

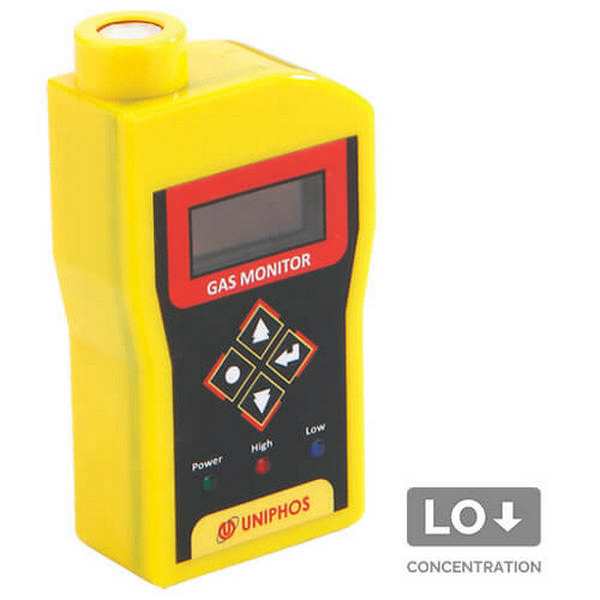

The Uniphos KwikAlert is a compact single gas, diffusion based personal monitor designed to monitor the work environment for dangerous levels of Methyl Bromide gas. Equipped with a bright and easy to read OLED display, the gas concentration is continuously displayed, and its user settable audio and visual alarms alert the user of dangerous levels of gas. With data logging available as standard, monitoring TWA and STEL limits is a breeze.

The MBr KwikAlert gas monitor can detect MBr in the range of 0 to 200 ppm, making it an ideal tool to both check for leaks around the fumigation chamber, as well as monitor the environment for dangerous levels of MBr.

Compare
Add to wishlist
SKU: df4a3daac79c Categories: , Tag:
Description
Features
  • Micro-controller-based technology with high contrast, easy to read OLED display 
  • Range: 0 – 200 ppm 
  • Resolution: 1 ppm 
  • Data logging capability with Gas conc., TWA conc., Date & Time information 
  • Audible / Visual alarm 
  • USB interface with PC
Specification
  • Gas: Methyl Bromide
  • Range: 0-200 ppm
  • Resolution: 1 ppm
  • Sensors: Solid Sate Sensor
  • Accuracy: Inherently +/- 2% (but also depends on the calibration gas accuracy and calibration method)
  • Drift: Less than 2% of the signal per month at constant temperature and pressure.
  • Gas sampling: Diffusion
  • Alarms: User-Settable Lo Alarm comes with Visual Blue LED indication.
    1.          User-Settable Hi Alarm comes with 85Db Audio alarm and
    2.          Visual Red LED indication with optional vibrational alarm.
                  TWA and STEL alarms can be provided.
  • Data logging: As standard, with gas concentration, date & time
  • Power source: 7.4 V Li-ion rechargeable battery pack
  • Runtime: 7 – 8 hours when battery full charged.
  • Data Transfer/Print: USB (wired) communication from instrument to computer.
  • Function keys: 4-keys for basic operation/setting & calibration.
  • Operating temperature: 0 to 40 Degree C
  • Display: 8×2 Alphanumeric OLED display
  • Instrument Enclosure: ABS Plastic
  • Ingress Protection: IP 65
  • Size: Height = 135 mm
           Width = 70 mm
           Depth = 35 mm
  • Weight:  Approx. 300 grams
  • Certification: CIMFR & CCOE (PESO) approval: Ex ib IIA IIB T4
                            CE
Gas List
Gas Name
 Model No  Ordering Code  Range  Resolution  Sensor Technology  Data Sheet
Methyl Bromide  351M  EF000588  0-200 PPM  1 PPM  SS
