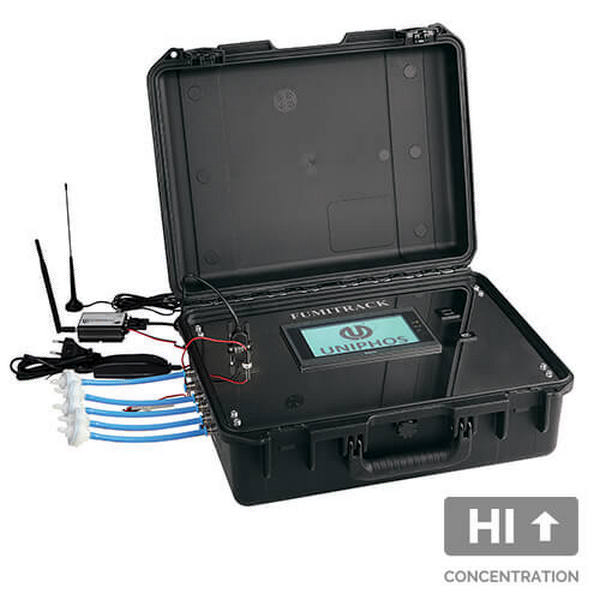

FumiTrack Multiport with Expansion Module

FumiTrack Multiport with Expansion Module

Uniphos Multiport FumiTrack is a portable, programmable, fully automatic multi-port gas monitor for the periodic monitoring of Phosphine during Fumigation. Housed in a tough Pelican Storm Case, it provides superior protection in tough environments. The multi-port FumiTrack is capable of periodic measurement from up to 4 ports at user-settable intervals. With the addition of an 8-port expansion pack, monitoring can be expanded from up to 12 ports.  Equipped with the latest embedded and IoT technologies, the inbuilt GSM modem pushes data to the cloud and enables the user to remotely monitor gas concentration levels, with information like Cycle No., Date, Time, Site & Location. Once programmed, the FumiTrack will work automatically, without any human intervention, for the entire fumigation period, enabling the user to remotely monitor the fumigation from anywhere in the world.

Compare
Add to wishlist
SKU: 6b439b0fae0d Category: Tag:
Description
Features
  • Colour TFT touch-screen interface
  • Range: PH3 0-2000 or 0-5000 ppm
  • Fully programmable menu – once programmed can run for several cycles of operation covering entire fumigation period, without any human intervention
  • Logging of gas concentration levels with information like Cycle No., Date, Time, Site & Location on a USB memory drive
  • Remote data upload to the cloud using GSM technology
  • Inbuilt sample draw pump – can draw sample from 100 meter
  • Housed in a tough Pelican Storm Case – weather and waterproof
Specification
  • Gas Name: Phosphine
  • Concentration range: 0 – 2000 ppm
  • Resolution: 1 ppm
  • Response Time (T90): Typically, less than 30 seconds after Establishment of the gas concentration in the sensor hood.
  • Accuracy: Inherently ± 2% (depends on the accuracy of the calibrating gas & sampling system)
  • Operating Temperature: 0o to + 45oC, 32o to 113oF
  • Operating pressure Ambient: ± 10%
  • Gas Sampling: Sample Draw Type (with inbuilt pump).
  • Sampling Time: User settable
  • Purge Time: User settable
  • Data Logging Function: Available
  • Inbuilt Pump Flow rate: 800 – 1000 ml/min
  • Power Supply: 110 – 230 V AC/110 V AC, 50 60Hz Hz
  • Construction Material: Pelican Case



FumiTrack Expansion Module Specs

  • Gas Compatible: PH3
  • Gas Sampling: Sample draw type with 2 Litres/minute (Suction capacity from a distance of 300 feet)
  • No. of zones: 8 x inlet ports
  • Electronics: Fully automated system
  • Communication: RS485 (2 wire) Interface Proprietary Protocol
  • Power Supply: 110-240V AC, 50/60 Hz Inbuilt SMPS (+24V, +5V, -5V, GND)
  • Enclosure: Robust and weather proof Pelican Storm case
  • Operating Temperature Range: -10 to 50 °C
  • Operating Pressure: Ambient +/- 10%
  • Weight: Approx. 2 kg
  • Dimensions: 487 x 386 x 185 mm
