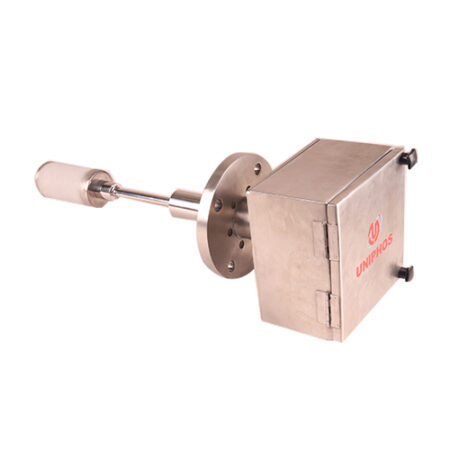

Simple Sampling Probe

The Uniphos Peltier Cooled Probe is an advanced sample conditioning system to draw a gas sample from an emissions stack being monitored. Sample extraction and conditioning is an important part of all Continuous Emission Monitoring Systems (CEMS) and includes extracting the sample from the stack and maintaining the dew point of the sample at such a level that there is no condensation at any point until the concentration of the sample is measured. This ensures proper transport and measurement of sample concentrations.

The Peltier Cooled Probe is a unique product which is based on an advanced hot and dry extractive technique where the sample is extracted and conditioned on the stack and transported to the analyzer using a non-heated sampling tube at ambient temperature. It consists of a stack mountable system which includes a heated probe, a short, heated sampling line and a Peltier cooled sample conditioning module, all integrated in a single enclosure. Using a Peltier Cooled Probe reduces the length of the heated sampling line to less than half a meter, bringing down the operating cost many times.

An optical instrument designed to measure the concentration of dust or particulate matter suspended in the exhaust gas passing through a duct, stack, or flue; typically the exhaust gas from an industrial combustion process or air filtration system.

Dust Analyzer uses the Innovative Dynamic Detection Principle (DDP) which measures fluctuations in the intensity of a light beam, using a folded beam Transceiver /Reflector arrangement. Increased particulate density in the stack causes the scattered light intensity to increase. When calibrated against reference standards, the intensity of this signal relates directly to the particulate concentration in the stack, and this can be used to display as a reading in mg/m³.
