Hybrid Compression Flow regulator
Hybrid Compression Flow Regulator is manufactured to give various fixed flow rates and compatible for all calibration needs.
Made with aluminium and Stainless Steel , this regulator is light and durable can be used with ¼” tubing at inlet.
Suitable for low ppm reactive gasses as all parts are made of Stainless Steel and ranges from 0.5 L/Mn to 25 L/Mn.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn to 25.0 L/Mn
Inlet Connection:
Compression Fitting for ¼ “ Tubing
Outlet Connection:
Barbed connection
Material:
Aluminium and Stainless Steel
Warranty:
1 year
Related products

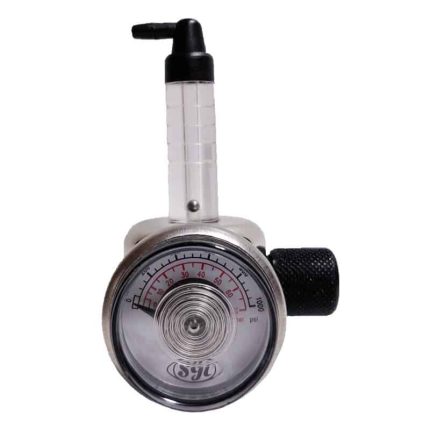

S Flow Regulator
An Economical Alternative to the fixed flow regulator and comes with adjustable flow rates.
The S-Flow regulator comes with ON/OFF knob and a rotameter to indicate flow rates.
SPECIFICATIONS
Inlet Pressure:
70 bar or 35 bar
Outlet Flow:
0.25L/Mn, 0.5 L/Mn, 0.75L/Mn, 1.0 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M or Aerosol
Outlet Connection:
Barbed Outlet
Material:
Brass
Warranty:
1 year
High Pressure Fixed Flow Regulator
It is compatible with all gas cylinders with standard C10 connections and is available in variety outlet flows and can be used with gas mixture in disposable cylinders.
SPECIFICATIONS
Inlet Pressure:
200 bar
Outlet Flow:
0.3 to 7 L/Mn at 4 bar pressure
Inlet Connection:
1/4“ NPT F for the high Pressure
Outlet Connection:
1/4“ NPT F for the high Pressure
Material:
Brass & Stainless Steel
Warranty:
1 year

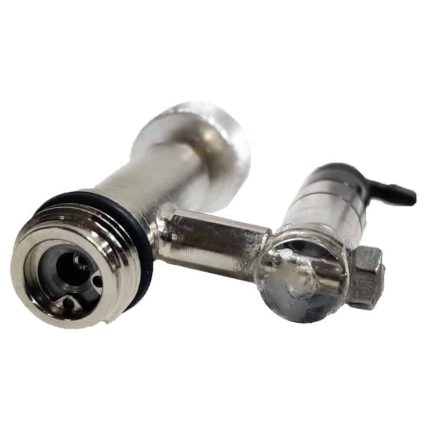

Mini Flow C10 Valve
It is used with the 20 litre mini gas cylinder.
Designed with a simple on/off valve the gas flow is regulated through a Rotameter.
SPECIFICATIONS
Inlet Pressure:
35 bar
Outlet Flow:
0 to 1 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M or CGA 600 or Aerosol
Outlet Connection:
Barbed Outlet
Material:
Brass
Warranty:
1 year
Single Stage Regulator
Single-stage gas pressure regulators reduce cylinder pressure to delivery or outlet pressure in a single or one step. Its one of the safest means to reduce pressure and has large supply pressure effect.
The Regulator comes with gauge upto 315 Bar and bottom connection made of stainless steel.
SPECIFICATIONS
Inlet Pressure:
150 bar max
Outlet Pressure:
0-2 bar max
Outlet Flow:
15 L/Mn
Inlet Connection:
1/4” NPT Female- Adaptor to C10 valve
Outlet Connection:
¼” NPT female or 1/8” NPT Female
Regulator Inlet Port:
¼” NPT Female – Adaptor to c10 valve or 1/8” NPT Female
Material:
Stainless Steel and Aluminium
Warranty:
1 year
Bump Test Fixed Flow Regulator
Bump test is a functional test of a gas monitor.
This regulator is used for calibration and working of Bump test for known quantity gas.
SPECIFICATIONS
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
1/8” BSP or NPT-F
Material:
Brass
Warranty:
1 year
Fixed Flow Regulator NPT
Fixed Flow Regulator is manufactured to give various fixed flow rates and is compatible with all gas cylinders with a NPT connection.
SPECIFICATIONS
Inlet Pressure:
200 bar
Outlet Flow:
0.5 L/Mn & 1.0 L/Mn
Inlet Connection:
1/4“ NPT F
Outlet Connection:
Barbed connection
Material:
Stainless Steel
Warranty:
1 year
Standard Demand Flow Regulator
Demand Flow Regulator is used mainly for docking stations and regulator is set to open only under vacuum of 3-inch water column which gives a flow rate of 0-3 L/Mn.
The regulator comes in both standard C10 connection and High-Pressure NPT connection.
SPECIFICATIONS
Inlet Pressure:
70 bar or 200 bar
Outlet Flow:
0-3 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M or 1/4“ NPT F for the high Pressure
Outlet Connection:
Barbed Outlet
Material:
Brass or Stainless Steel
Warranty:
1 year
