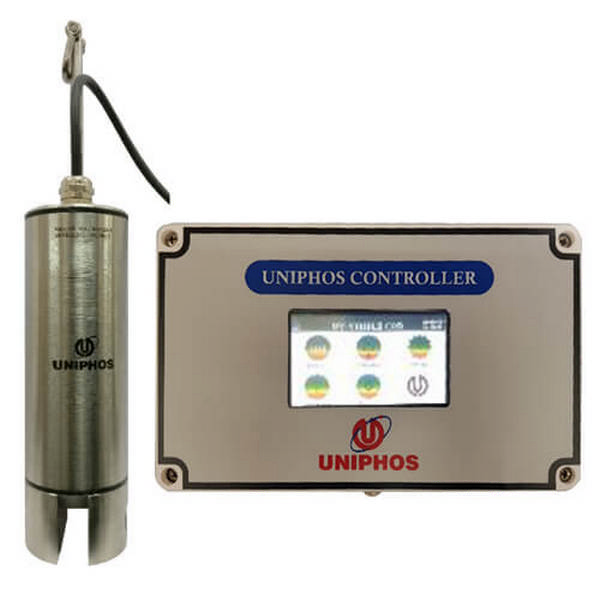

Uniphos TSS probe with Controller

Uniphos TSS probe with Controller

The Uniphos TSS probe utilizes optical spectroscopic technique to determine the presence of suspended solids in Industrial wastewater, surface water, etc.  Utilizing an IR light source and IR detector to determine the TSS, as well as a solenoid valve for auto purging/ cleaning the sensor, the instrument provides an accurate and affordable solution for TSS monitoring in wastewater.

Equipped with a next generation touchscreen HMI controller for display and programming the unit, the probe provides a variety of data communication options such as RS-485 MODBUS and industry standard 4-20 mA analog output.

SKU: ed27ec5c8d20 Category: Tag:
Description
Features
  • Automatic cleaning of probe with high-pressure compressed air provides higher reliability than the mechanical blade
  • No reagents
  • Low operating cost
  • No secondary pollution
  • Fast response, suitable for online real time measurements
Specification
  • Detection Principle: Optical Spectroscopic (TSS: 860nm)
  • Range: 0-1000 NTU
  • Accuracy: ± 10% of the reading
  • Zero Drift: < 1% FS
  • Response Time: 10 seconds
  • Calibration: Calibration with Formazine standard for TSS
  • Power Requirement: Probe – 24VDC
 Controller – 230V AC/50 Hz
  • Data Communication: RS 485(MODBUS-RTU Protocol) & 4-20 mA
  • Max. Load Resistance: 500Ω on 4-20mA O/P
  • Display: 4.3” TFT with touchscreen
  • Body Material: SS 316
  • Operating Temp: 5-45o Celsius
  • Dimensions: Probe – Diameter: 90mm, Height: 320mm
    •                   Controller– H=260mm, L=160mm, B=90mm
  • Weight: Probe: 2.5kg Approx.
 Controller: 3.5Kg Approx
  • Cable Length: 10 meters
