| Product Code | NCSOLO461 |
|---|---|
| Brand | Solo |
| Power Source |
Battery operated – batons |
| Suitability |
Fixed temperature detectors Rate-of-rise detectors Combination detectors |
| Weight | 2.80kg |
| Product Datasheets | Solo Product Datasheet |
Solo 461 – Cordless Heat Detector Tester Kit
The Solo 461 cordless heat detector tester is supplied with two 3.0Ah battery batons and a smart fast battery charger as standard. Requiring no wiring whatsoever, the cordless heat detector tester uses Cross Air Technology where air is heated, blown across the cup and directed at the detector sensor. The Solo 461 tester is suitable for use on fixed temperature, rate-of-rise and combination detectors up to 90 °C/194 °F and provides rapid detector activation.
Unique Cross Air Technology: air is heated, blown across the cup and directed at the detector sensor
UL and ULC listed
No trailing cables – fully complies with Health and Safety at Work regulations
Battery operated – supplied with two battery batons
Provides rapid detector activation
Suitable for most fixed temperature, rate-of-rise and combination detectors up to 90 °C/194° F (not Sabre)
Visual low battery indicator
Supplied with a smart fast battery charger (powered by mains lead or 12V DC socket adapter)
Quiet fan motor for discreet operation
Lightweight and easy to use
Can be used at height when used in conjunction with a Solo telescopic access pole (sold separately)
Suitable for use at angles
1 year manufacturer’s warranty
Description
Related products
Solo 365 ES3 Smoke Detector Tester Cartridge (Pack of 3)
The ES3 Smoke Cartridge for the Solo 365 smoke detector testing system is a non-pressurised and non-flammable cartridge that can easily be stored and transported without any specific safety measures, unlike the aerosols used by standard testing equipment. With a comparable test capacity to the Solo A3 and A10s aerosols when used as per manufacturer recommendations but at a greatly reduced size and weight, spare cartridges can be carried without worry or burden meaning there will be no need to return to the van when they run out.
Designed for use only with Solo 365 equipment
Supplied in packs of 3 cartridges
Provides on-demand smoke for accurate testing and minimal wastage
Non-pressurised for safe storage and transportation
Small and lightweight, can easily be carried in pockets
Comparable test capacity to the A3 and A10s aerosols for standard Solo dispensers
Please note: Batch number shown in the images may not be the batch number of the units dispatched.
Solo 425 – Heat Detector Tester 5m Extension Cable
Allowing technicians to test heat detectors without the need for ladders or scaffolding, Solo telescopic and extension access poles are used in conjunction with Solo mains powered heat detector testers. This 5m/16ft extension cable ensures that the Solo mains powered heat detector testers can be used where multiple poles are required to achieve a long working height.
Cable length: 5m/16ft
Designed to help power Solo mains heat detector testers
Needed for applications where multiple telescopic or extension poles are used
Allows testing of heat detectors mounted at greater height
Solo 365 Replacement Smoke Generator
This replacement Smoke Generator for the Solo 365 smoke detector tester is designed to produce on-demand test smoke in conjunction with the ES3 Smoke Cartridge. As with most core components of the Solo 365, the Smoke Generator was created with the user in mind and is easy to replace should its performance drop for any reason.
Designed for use only with Solo 365 equipment
Works with the ES3 Smoke Cartridge
Automatically creates smoke when the Solo 365 cup is over a detector head
On-demand, 5-second smoke cycles prevent wastage and detector contamination
Easy to install, field-replaceable design – no manufacturer service required
Test more detectors in less time by carrying spares instead of going back to the van
Solo 101 – Extension Access Pole
The Solo 101 extension access pole, designed for use on its own or in conjunction with a Solo telescopic pole, allows for detector testing equipment to be used at normal ceiling height or up to a maximum working height of 9 metres. The extension access pole negates the need for ladders or expensive scaffolding and therefore ensures that alarm technicians fully comply with the Safe Working at Height Directive.
Pole length: 1.13m
Can be used:
On its own to reach normal ceiling height
In conjunction with a Solo telescopic access pole for additional height
With Testifire and Solo testing devices
Ideal for use with Solo detector equipment including:
Solo 330 Smoke Dispenser
Solo 461 Cordless Heat Detector Test Kit
Solo 423 & 424 Mains Powered Heat Detector Testers
Solo 200 Universal Detector Removal Tool
Ensures compliance with the Safe Working at Height Directive
Allows for "functional" testing to be carried out
Testing equipment can be used at heights up to 9 meters using three extension poles and the Solo 100 or 108 access poles
Non-conductive glass fibre construction protects engineer from inadvertent shorts

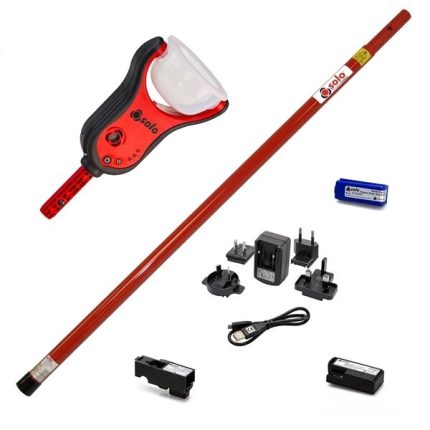

Solo 365 Smoke Detector Tester Head & Key Components Kit
The Solo 365 smoke detector tester allows easy, functional testing of smoke detectors in any environment thanks to its light weight, built-in LED torch, and non-pressurised smoke cartridges that are far smaller than standard Solo aerosol cans. Combining the simplicity of the Solo 330/332 head with the intelligence and cartridge system of the Testifire range, the Solo 365 features an 'auto-start' proximity sensor that will automatically start and stop the testing process to reduce wasted smoke and let engineers move around sites quicker. The powerful 2600mAh / 9.5Wh Lithium Ion battery is considerably smaller and lighter than the batons used for Testifire systems, making the unit easier to carry and use, while the MicroUSB interface means recharging can be done almost anywhere at any time.
15% lighter than the Solo 330
Works with standard Solo 100 / 108 Telescopic Access Poles and 101 Extension Access Poles
Slimline design enables access to awkwardly positioned detectors
Smaller, non-pressurised smoke cartridges for ease of storage and transport
Delayed start and manual purge options for ASD and non-standard detector testing
Battery, cartridge, and generator status LEDs
Key components available as user-replaceable spares – no manufacturer service required!
ES3 Smoke Cartridge
Field Service Pack (smoke generator, battery, cup & membrane)
Spare Battery Pack
Smoke Generator
Cup and Membrane
Universal Charging Kit
Auto-LED torch for testing in dark areas
Test/clear cycle status indicators located at the bottom of the head for clear line of sight
Proximity sensor automatically starts test and clear cycles for quicker testing
Controlled smoke delivery for less wastage and more efficient testing
Automatically turns off after 10 minutes of inactivity to extend battery life
Please note: This kit does not include any access poles. Solo 100 / 108 Telescopic Access Poles and 101 Extension Access Poles are available separately or included with the Head Unit and other components in our Testing Kits.
Solo 610 – Protective Storage Bag
This protective storage/carrying bag is designed for use with Solo and Testifire smoke, heat and CO detector testing systems including head units, battery batons, chargers and aerosols. Ideal for use by technicians when visiting a site, the protective bag allows the Solo equipment to be carried with ease in a tidy and compact manner for a professional look. Helps to protect equipment from damage during transit and when not in use Provides a compact and tidy storage solution Designed for use with Solo and Testifire smoke, heat and CO detector testing products Suitable for storing head units, battery batons, chargers and aerosols A separate bag for access poles is including as standard Provides a professional look for when a technician attends site
Solo 727 – Fast Battery Charger
The Solo cordless detector testers are powered by a rechargeable battery baton, allowing smoke, heat, and CO detectors to be tested without the need for cabling. The Solo fast battery charger is supplied with 12V and mains connections and is used to recharge the cordless heat detector tester battery batons. The charger is lightweight and provides a rapid charging time of 90 minutes.
Designed for recharging Solo 770 battery batons
Provides power for Solo cordless detector testers:
Solo 460 – Heat
Testifire 1000 – Smoke / Heat
Testifire 2000 – Smoke / Heat / CO
Offers a rapid charging time of just 90 minutes
Supplied with 12V and mains connections
Please note: The Solo 727 battery charger will NOT charge the Solo 760 battery.
Solo 332 – Large Smoke Dispenser
Fitted with a large clear cup, the Solo 332 is a smoke dispenser suitable for detectors up to 17.7cm/7" in diameter. Designed to introduce simulated smoke (not supplied) to a detector in an effective manner, the 332 allows a functional sensor test to be carried out. The dispenser is suitable for use with the Solo telescopic and extension access poles to enable safe smoke detector testing when installed at height.
Allows "functional" smoke detector testing to be carried out
UL listed
Robust and lightweight
Large dispensing cup suitable for detectors up to 17.7cm/7" in diameter
Spring loaded mechanism and sealed housing minimises waste and optimises aerosol delivery
Clear cup ensures 360 degree view of the detector
Swing frame allows for use at/from angles
Designed for use with Solo smoke and Solo CO aerosols (not included)
Can be used with the Solo telescopic and extension access poles for safe testing at heights
Suitable for use when testing domestic smoke and CO alarms
