Benefits
As versatile as your requirements

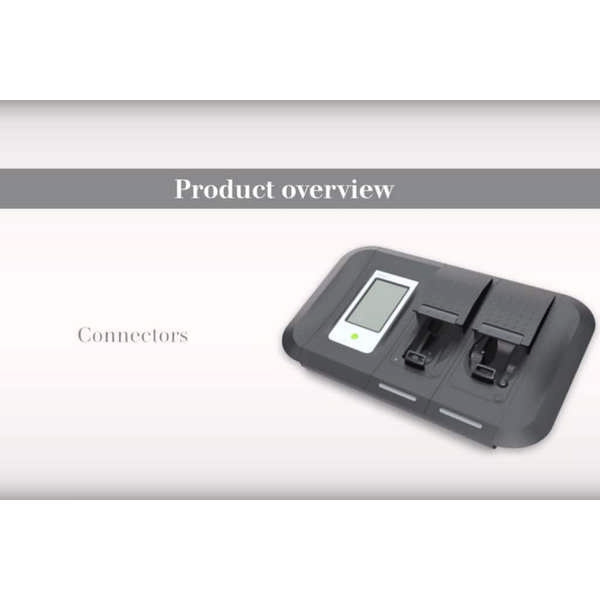

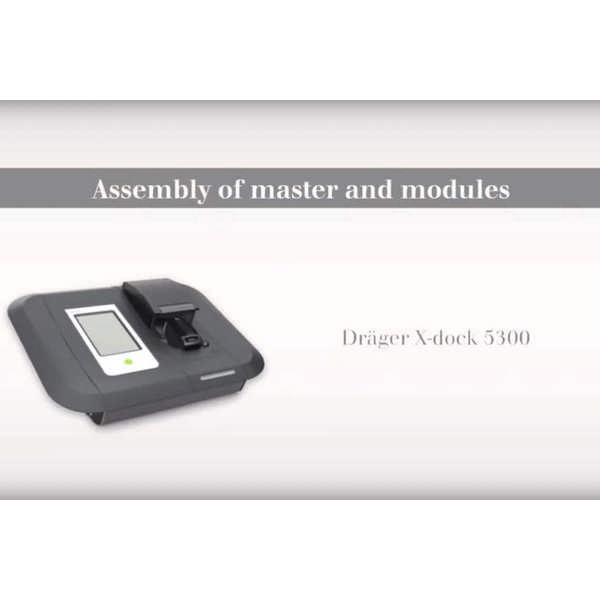

The X-dock is available in a wide variety of versions. The X-dock 5300 includes a master station including a module for a gas detection instrument from the X-am® or Pac® family. It is immediately ready to use. The X-dock 6300 and 6600 versions can be configured freely. They consist of a master station and can be expanded with up to 10 modules for X-am and/or Pac gas detection instruments.
Easier than ever before

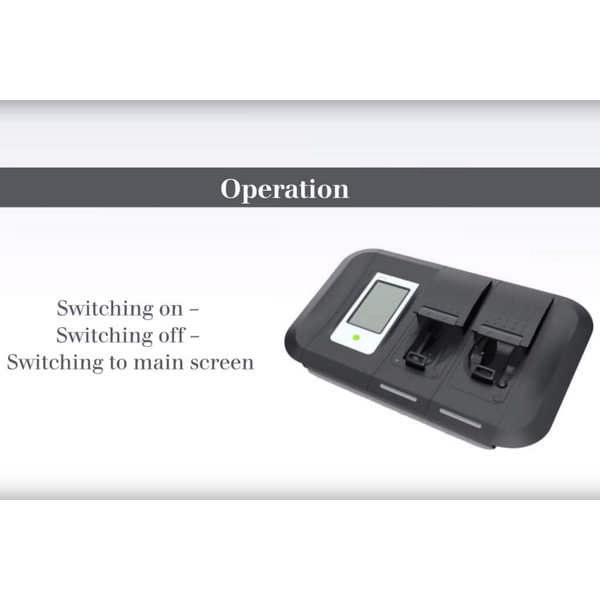

Insert the device, close the lid and remove it when the indicator goes “green” – a test with the X-dock is just that simple. It immediately detects all sensor combinations. Furthermore, the X-dock automatically tests and adjusts when all required test gases are connected. The station works independently and can be configured and used without a PC. The station is operated via an integrated touchscreen. A gas detection instrument is detected as soon as it is inserted, and all data is documented in the database.
More safety thanks to complete documentation
Do you need to document whether or not your devices are ready for operation? Who tested which device when, and what the result was? The X-dock stores all of the relevant data and reads the collected information from the gas detection instruments for subsequent evaluations – providing you with complete control every step of the way. In addition, you can print out a calibration or test certificate directly from the stations using a compatible printer. This functionality allows the user to manage all requirements of EN 60079-29-1 and EN 60079-29-2.
Automatically reduced costs
Significant time savings
Further benefits
- Touchscreen operation at the master station
- Up to three configurable test routines
- Automatic leak tests
- Automatic tests of alarm elements (acoustic, visual and vibration alarms)
- Optional charging function for X-am 1/2/5×00, 3500/8000
- Replaceable seal cartridge
- 12V operation (e.g., in vehicles) possible
- Can be subsequently expanded with up to 10 modules (X-dock 6300/6600)
- Evaluation of sensor response time
Fleet management software: Expand your possibilities
The gas detection fleet always under control! With Dräger fleet management software you network the X-dock stations for more efficiency. Your advantages:
- Evaluated data of the calibration system and the gas detection devices at a glance
- Certificates and reports, tests performed, alarms automatically documented
- Edit device configurations centrally without having to bring each device into the workshop
- E-mail notifications when inspections are necessary or intervals have expired*
- Monitor readiness and utilisation of test stations
