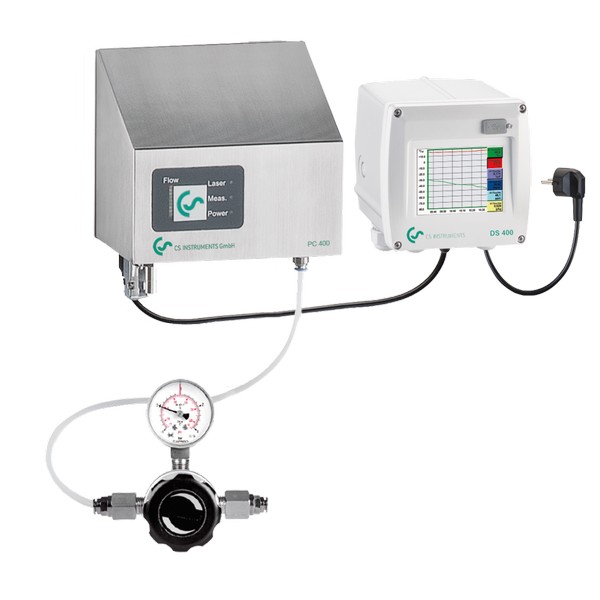

Particle counter PC 400 – stationary solution according to ISO 8573
The high-precision, optical particle counter PC 400 measures particles from a size of 0.1 µm and is therefore suitable for monitoring compressed air quality class 1 (ISO 8573). The proper functioning of the filtration elements installed in the compressed air is monitored and any filter breakthroughs are detected immediately.
| Brand |
CS Instruments |
|---|
