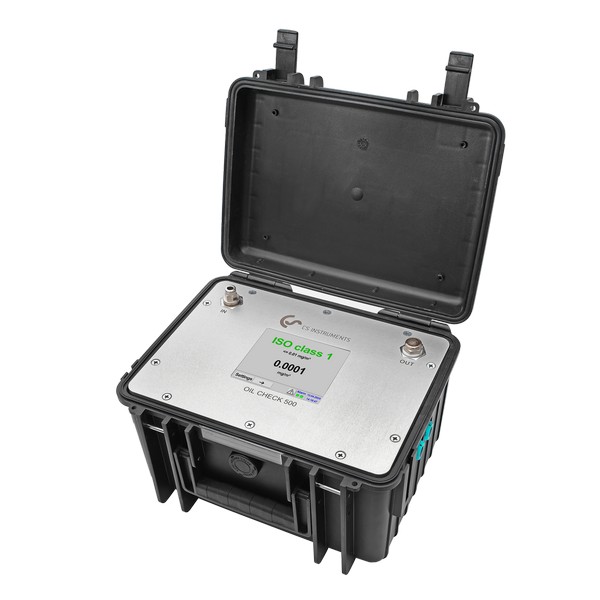

OIL CHECK 500 Portable
The Portable version of our monitoring system for measuring the Vaporous Residual oil content of Compressed air and Nitrogen comes in a practical case and is the ideal solution for flexible measurement at different locations.
"Forced Pressure Variation" for Long-term stable measurement results - auto-calibration:
Using the innovative "Forced Pressure Variation" measuring method, the OIL CHECK 500 generates reference gas in different mass concentrations within the device. This CS INSTRUMENTS-protected process can be used to compensate for ageing or contamination-related components in the measurement signal, in particular long-term drift. No wearing parts such as
activated carbon filters are required for the generation of zero air. The result is Low maintenance and Long-term stable Measuring.
| Brand |
CS Instruments |
|---|
Description
Related products

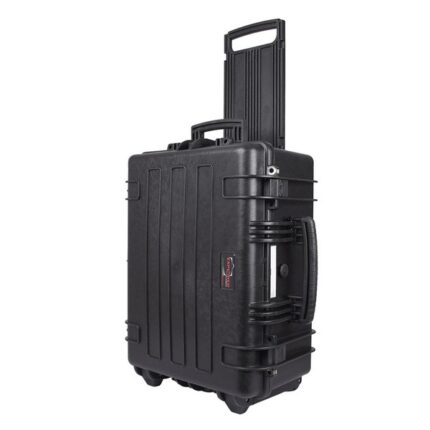

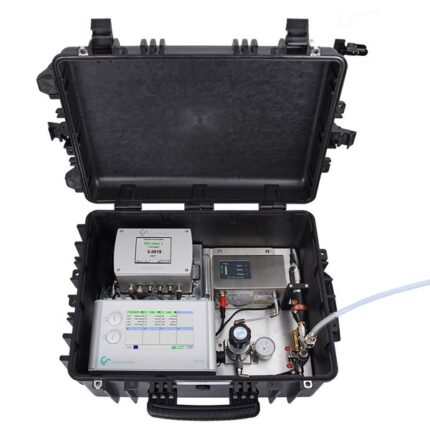

Compressed air quality – mobile “All in one solution”
Mobile compressed air quality measurement, residual oil - particles - residual moisture "All in one solution" - Compact trolley with wheels (external dimensions 607 x 275 x 475mm) (WxHxD) and permanently mounted sensors: OIL CHECK 500, PC 400, FA510, incl. portable sampling system consisting of 2 m PTFE hose, quick coupling (oil and grease-free). DS 500 - The intelligent chart recorder The chart recorder DS 500 is the centrepiece of the compressed air quality measurement system, where the measurement data from the sensors for residual oil, particles and residual moisture are measured and documented. The measured values are displayed graphically on the 7″ colour display. The integrated data logger stores the measured values safely and reliably.

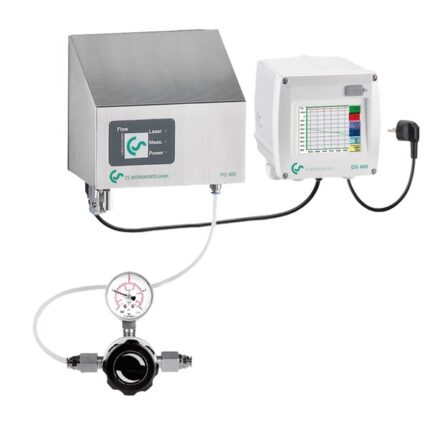

Particle counter PC 400 – stationary solution according to ISO 8573
The high-precision, optical particle counter PC 400 measures particles from a size of 0.1 µm and is therefore suitable for monitoring compressed air quality class 1 (ISO 8573). The proper functioning of the filtration elements installed in the compressed air is monitored and any filter breakthroughs are detected immediately.
Leak detector with camera LD 500/510
The new leak meters LD 500/510 with integrated camera and leakage calculation are ideal measuring instruments which help to find and document even smallest leakages (0.1 l/min corresponds to approx. 1 € p. a.) easily even in far distances. LD 510 is the worldwide first leak meter with an additional freely assignable sensor input for all CS sensors. In addition to the leakage measurement and detection also all necessary measurements with regards to dew point, flow, pressure, and temperature ... can be carried out.
VA 525 – Compact Inline flow meter for compressed air and nitrogen
The innovative VA 525 combines modern digital interfaces for connection to an energy monitoring system with a small, compact design. The VA 525 is always used when many machines (compressed air consumers) have to be integrated into an energy monitoring network. Reduce your energy costs and increase your sustainability with the VA 525 compact sensor. Monitor the consumption of individual machines and analyze your leakage flows with just one measuring device.
DP 510 – Portable dew point meter with third-party sensor
and integrated data logger. With DP 510 it is possible to performing all measuring tasks with one instrument. It disposes of all functions of DP 500 and has an additional freely assignable sensor input. Additionally to the internal dew point measurement one further optional sensor can be connected. So you could meet nearly all industrial measuring tasks.
