Benefits
Simple, quick installation

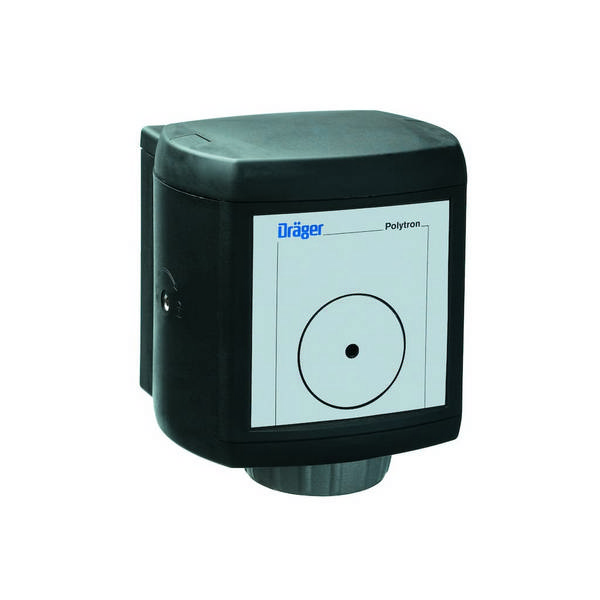

The Polytron 3000 consists of two components, the docking station, for mechanical and electrical installation, and the Polytron 3000 transmitter. The docking station can be mounted and wired in advance, guarded against rain and dust by a modular cover until time of commissioning. During commissioning, the Polytron 3000 is simply inserted into the docking station and secured with a quick-quick lock mechanism. After inserting the sensor, the system is ready for operation.
Wide range of applications
With its exceptional electromagnetic compatibility and a variety of mounting options, the CE marked Polytron 3000 is suitable for many different areas of application ranging from chemical to the semiconductor industries.
Easy to operate and maintain
The operation and maintenance of the Polytron 3000 is easy. The tried and tested DrägerSensor is equipped with an integrated data memory that contains all calibration information. This allows the Polytron 3000 to accept a pre-calibrated sensor, speeding up maintenance or sensor change. If preferred, the sensor can be field calibrated in the transmitter.
Explosion Protection
Approvals for worldwide use including, ATEX, IECEx, UL, CSA and temperature range from -40 to +65°C, Protection class (IP66/67).
Key Facts
- Type
- Transmitter
- Cable entry
- M20
- Display
- ✓
- Intrinsic Safety
- ✓
- Flameproof
- ✗
- Increased Safety
- ✗
- SIL
- ✓ (SIL 1)
- 4-20 mA
- ✓
- Bus
- ✗
- HART®
- ✗
- Wireless
- ✗
Technical Data
- Power Supply
- 12 to 30 V DC, 2-wire
- Temperature (operation)
- -40°C – 65°C
- Humidity
- 0 to 100% r.h., non-condensing
- Pressure (hPa)
- 700 – 1300
- Dimensions (H × W × D)
- 0.17×0.14×0.13 m
- Weight
- 1.98 lb
- Housing Material
- Glass fibre reinforced polyester (GFRP)
- Degree of protection (IP class)
- IP66
Approvals
- ATEX
- ✓
- IECEx
- ✓
- UL
- ✓
- CSA
- ✓
- CE marking
- ✓
- GOST (EAC)
- ✗
- Performance approval
- ✗
- Shipping approval (MED)
- ✗
