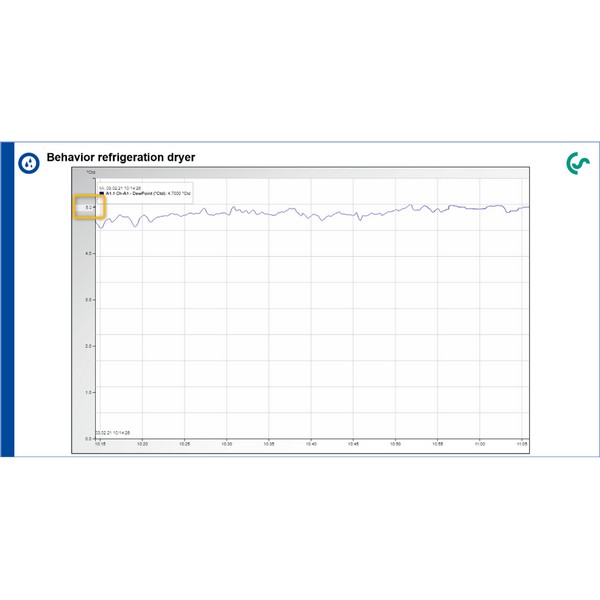

Ideal for refrigeration dryer applications with an accuracy of +/- 1°C in the measuring range -20…+50°Ctd. Gas-independent measurement, also suitable for other, non-corrosive gases Compact design, ideal for dryer installations Robust design, protection class IP 66 Condensation insensitive sensor element Long-term stability and drift-resistant, thus optimized calibration intervals Fast adaptation time, especially from dry to wet conditions BSP, NPT or UNF thread Analog output 4…20 mA (two- or three-wire) and Modbus RTU (RS 485) interface Measured values available in different units, pressure dew point [°Ctd], temperature [°C], rel. humidity [%rh], abs. humidity [g/m³], degree of humidity [g/kg], humidity fraction V/V [ppmV/V], water vapor partial pressure [hPa], atmospheric dew point [°Ctd.atm]. On-site sensor diagnostics with handheld device or CS Service Software
FA 510/515 – Dew point sensor for refrigeration dryers
| Brand |
CS Instruments |
|---|
Related products

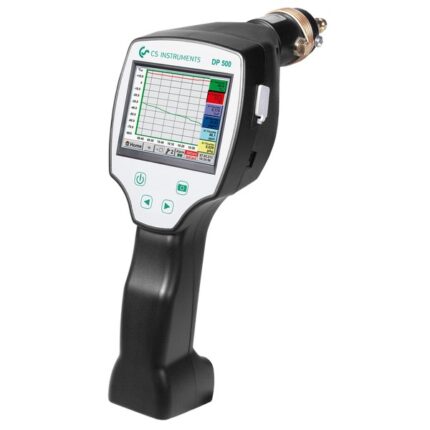

DP 500 – Portable dew point meter with integrated data logger
