KwikDraw Gas Detection Tubes · Short-term detector tube
KwikDraw Gas Detection Tubes
KwikDraw detector tubes, formerly MSA/AUER tubes, test more than 200 hazardous gases and vapours. The tube is connected to a bellows-type pump that draws a known volume of air with each stroke; the sensing chemical changes colour if the target gas is present and the stain length is read on the printed scale of most tubes. The tubes are pre-calibrated. The KwikDraw Deluxe pump and Gas Tester II have an automatic stroke counter and end-of-stroke indicator.
Description and features
KwikDraw detector tubes, formerly MSA/AUER tubes, test more than 200 hazardous gases and vapours. The tube is connected to a bellows-type pump that draws a known volume of air with each stroke; the sensing chemical changes colour if the target gas is present and the stain length is read on the printed scale of most tubes. The tubes are pre-calibrated. The KwikDraw Deluxe pump and Gas Tester II have an automatic stroke counter and end-of-stroke indicator.
01More than 200 hazardous gases and vapours
02Formerly MSA/AUER detector tubes
03Pre-calibrated

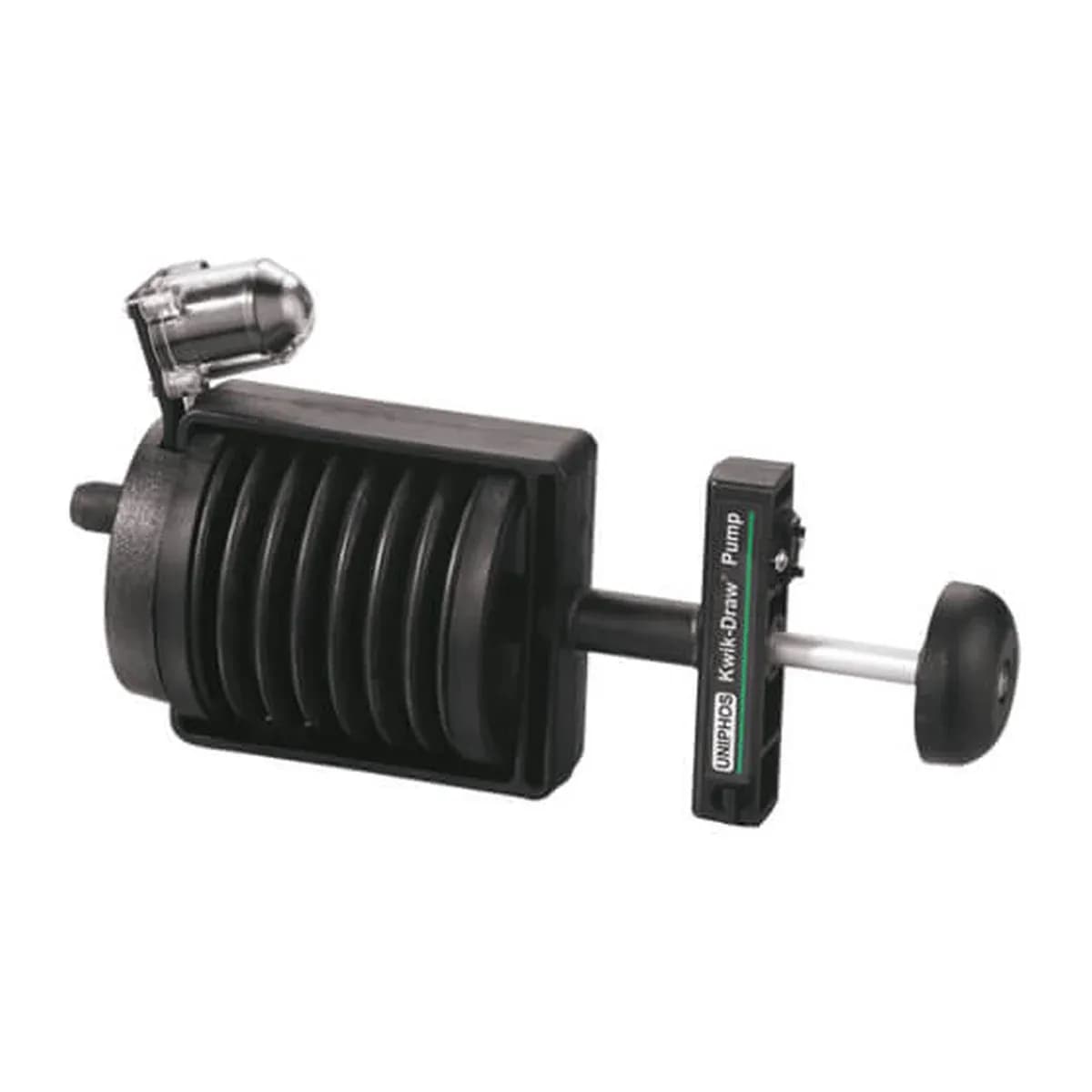

04Bellows pump draws a known volume per stroke
05Workplace and confined-space air monitoring: petrochemical and refineries, pharmaceutical, chemical and fertilizer, fumigation, food, pulp and paper, power and steel plants, municipalities, environmental monitoring
Technical data
- BRAND
- KwikDraw
- MODEL
- KwikDraw Gas Detection Tubes
- COMPATIBLE ITEMS

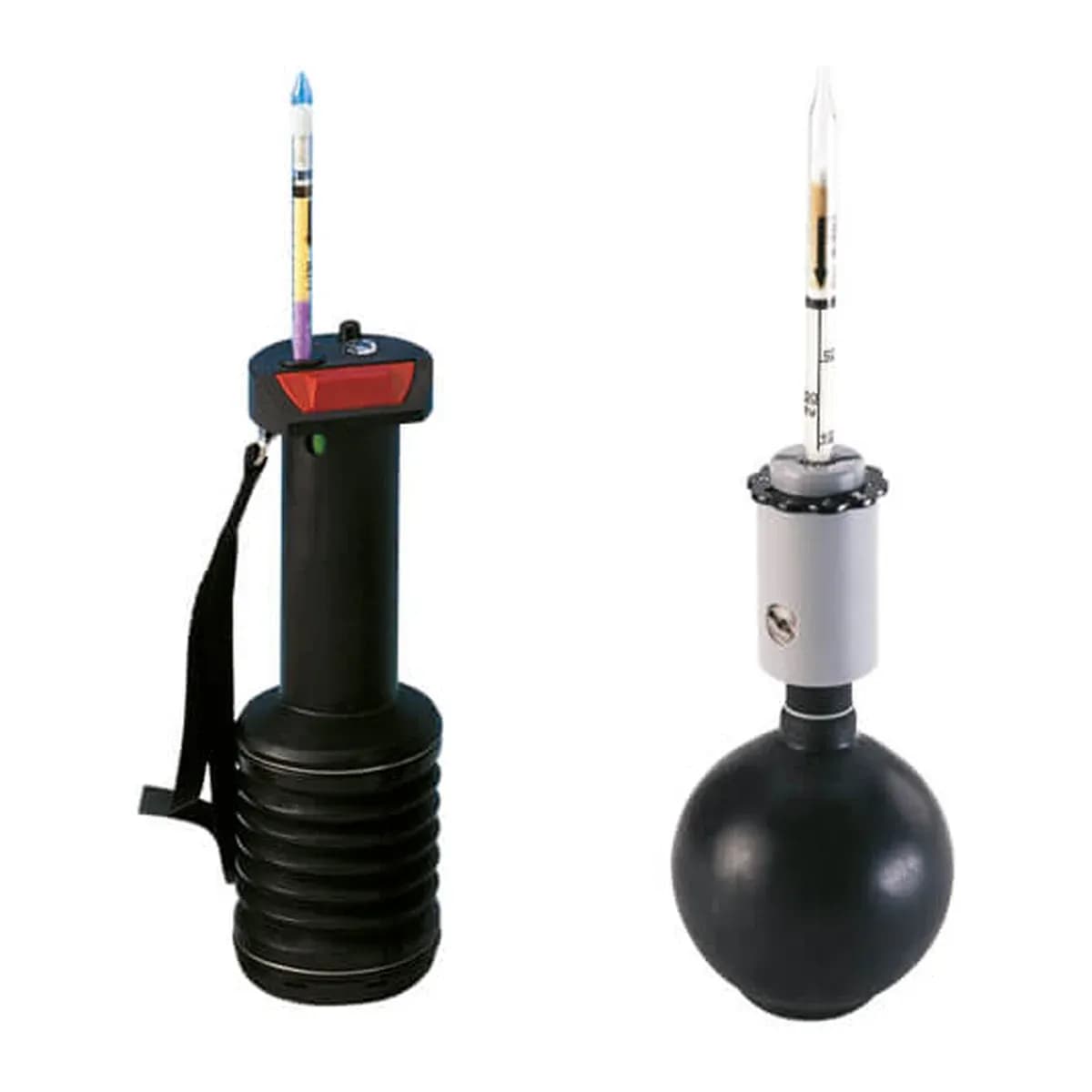

- KwikDraw Deluxe · Gas Tester II
Tube list
| Substance | Measuring range | Extended range | Tube name | Order code | Datasheet | SDS |
|---|---|---|---|---|---|---|
| Acetaldehyde | 5-50 | — | Formaldehyde-0.1 | D5086813 | ||
| Acetic Acid | 5-80 | 1-80 | Acetic Acid-1 | D5086821 | ||
| Acetylene | 400-8300 | — | CO-0.1% | D5085822 | ||
| Acetone | 100-10000 | — | Acetone-100 | D5086829 | ||
| Acetone | 25-3500 | — | MEK-50 | D5086837 | ||
| Acrolein | 0.1-10 | — | Acrolein-0.1 | 10017882 | — | |
| Acrylonitrile | 0.5-30 | — | Acrylonitrile-0.5 | 10016376 | ||
| Alcohols | 100-6000 | — | Ethanol-100 | D5086818 | ||
| Amines | 5-30 | — | Triethyl Amine-5 | D5086816 | ||
| Ammonia | 0.25-3 | — | NH3-0.25 | D7086893 | — | |
| Ammonia | 100-600 | 2-600 | NH3-2 | D5085845 | ||
| Ammonia | 20-600 | 2-600 | NH3-2 RH | D7085845 | ||
| Ammonia | 20-4000 | — | NH3-20 | D5085814 | ||
| Ammonia | 100-2000 | — | NH3-100 | D5086859 | ||
| Ammonia | 0.1…10 % | 0.5 – 10 VOL% | NH3-0.1% | D5085815 | ||
| Ammonia | Warning Marks | — | NH3-A | D5085755 | ||
| Ammonia | 20…1400 | — | NH3-20 ( 200 tubes) | D5085914 | ||
| Ammonia | 0.25-3 | — | Triethyl Amine-5 | D5086816 | ||
| Aniline | 0.5-30 ppm | 2-30 ppm | Aniline-0.5 | D7086898 | — | |
| Arsine | 0.05-1 | — | Arsine-0.05 | 10072098 | — | |
| Benzene | 0.25…10 | 0.5 – 10 PPM | Benzene-0.25 [specific] | D5086852 | ||
| Benzene | 0.25-10 | 2 – 10 PPM | C6H6-0.25 /a [Specific] | D7086896 | ||
| Benzene | 1-25 | 5-100 | C6H6-1 | D5086835 | ||
| Benzene | 5-100 | — | C6H6-5 | D5085816 | ||
| Benzene | 5-500 | — | Aromatic HC | D5086811 | ||
| Benzene | Warning Marks | — | Aromaten-A | D5085770 | ||
| Bromine | 0.2-3 | — | Cl2-0.2 | D5085801 | ||
| Bromobenzene | 20…..250 | 20 – 250 PPM | Aromatic HC | D5086811 | ||
| Bromoethane | 15-400 | — | Trichloroethan-5 | D5086834 | ||
| Bromomethane | 1…140 | 10 – 140 PPM | Methyl Bromid-2 | D5086845 | ||
| Bromomethane | 200…20000 | 200 – 8000 PPM | Methyl Bromid-200 | D5086847 | ||
| Bromomethane | 20-270 | — | Trichloroethan-5 | D5086834 | ||
| Butadiene,1.3- | 100-1200 | — | Ethylene-50 | D5086833 | ||
| Butane | 200-3800 | — | Propane-200 | D5086831 | ||
| Butyl Alcohol | Warning Marks | — | Alcohol-A | D5085773 | ||
| Butyl Alcohol | 150-2900 | — | Ethanol-100 | D5086818 | ||
| Butyl Amine | 3-36 | — | Triethyl Amine-5 | D5086816 | ||
| Butyl Mercaptan | 1.5-15 | — | Ethyl Mercaptan-0.5 | D5086815 | ||
| Butene | Warning Marks | — | Benzin-A | D5085769 | ||
| Butene | 100-5000 | — | Ethylene-50 | D5086833 | ||
| Carbon Dioxide | 100-3000 | — | CO2-100 | D5086814 | ||
| Carbon Dioxide | 0.1…7 % | 0.5 – 7 VOL% | CO2-0.1% | D5085817 | — | |
| Carbon Dioxide | 0.5-10% | — | CO2-0.5% | D5086844 | — | |
| Carbon Dioxide | 1-20% | — | CO2-1% | D5085841 | — | |
| Carbon Dioxide | 100-2000 | — | CO2-HP | D5085848 | ||
| Carbon Dioxide | Warning Marks | — | CO2-A | D5085758 | ||
| Carbon Dioxide | 100…2000 | — | CO2-HP (NaOH based) | D7086902 | ||
| Carbon Disulfide | 10-300 | 2-300 | CS2-2 | D5085834 | ||
| Carbon Monoxide | 50-1000 | 5-1000 | CO-5 | D5085836 | ||
| Carbon Monoxide | 5-1000 | — | CO-5(200 tubes) | D5085936 | ||
| Carbon Monoxide | 10…3000 | 100 – 3000 PPM | CO-10 [ppm] | D5085821 | ||
| Carbon Monoxide | 0.001…0.3 % | 0.01 – 0.3 VOL% | CO-10% | D5085820 | ||
| Carbon Monoxide | 0.1-1% | — | CO-0.1% | D5085822 | ||
| Carbon Monoxide | 3000-70000 | — | CO-3000 | D5086839 | ||
| Carbon Monoxide | 0.3-7% | — | CO-0.5% | D5085835 | ||
| Carbon Monoxide | 5-70 | — | CO-HP | D5085847 | ||
| Carbon Monoxide | Warning Marks | — | CO-A | D5085759 | ||
| Carbon Monoxide | — | — | CO-Colorimetric | D5086810 | ||
| Carbon Monoxide in H2 | 8-150 | — | CO in Hydrogen | D7086890 | — | |
| Chlorine | 0.2-30 | — | Cl2-0.2 | D5085801 | ||
| Chlorine | 0.25-15 | 1-46 | ClO2-0.05 | D5086812 | ||
| Chlorine | 50-500 | — | Cl2-50 | D5086855 | ||
| Chlorine | Warning Marks | — | Cl2-A | D5085757 | ||
| Chlorine Dioxide | 0.05-15 | — | ClO2-0.05 | D5086812 | ||
| Chlorobenzene | 40-610 | — | Aromatic HC | D5086811 | ||
| Chlorobenzene | 10-140 | — | Chlorbenzol-10 | D5093811 | — | |
| Chlorobenzene | Warning Marks | — | CKW-A | D5085771 | — | |
| Chlorobromomethane | 5-180 | — | Trichloroethane-5 | D5086834 | ||
| Chlorobutane | 5-170 | — | Trichloroethane-5 | D5086834 | — | |
| Chloroethane | 50-800 | — | Trichloroethane-5 | D5086834 | ||
| Chloropentane | 5-550 | — | Trichloroethane-5 | D5086834 | ||
| Chloropropane | 5-220 | — | Trichloroethane-5 | D5086834 | ||
| Cycloheptane | 80-3300 | — | Hexane-20 | D5086832 | ||
| Cyclohexane | Warning Marks | 100 PPM | Benzin-A (Gasoline-A) | D5085769 | ||
| Cyclohexane | 20-3400 | — | Hexane-20 | D5086832 | ||
| Cyclohexane | 40-3000 ppm | 40-200 ppm | Cyclohexane-40 | D7086897 | — | |
| Cyclohexane | 100-1500 ppm | — | Cyclohexane-100 | D7086889 | — | |
| Cyclohexyl Amine | 7-38 | — | Triethyl Amine-5 | D5086816 | ||
| Cyclooctane | 20-2100 | — | Hexane-20 | D5086832 | ||
| Cyclopentane | 80-2700 | — | Hexane-20 | D5086832 | ||
| Decane | 50-500 | — | Hexane-20 | D5086832 | ||
| Dibromoethane | 25-700 | — | Trichloroethane-5 | D5086834 | ||
| Dichloroethane | 8-300 | — | Trichloroethane-5 | D5086834 | ||
| Dichloroethane | Warning Marks | — | CKW-A | D5085771 | ||
| Dichloroethylene | 10-600 | — | Trichloroethane-5 | D5086834 | ||
| Dichloromethane | 100-1000 | 50-1000 | Dichloromethane-50 | D5085823 | ||
| Dichloromethane | Warning Marks | — | Dichloromethane-A | D5085772 | ||
| Dichloropropane | 5-440 | — | Trichloroethane-5 | D5086834 | ||
| Diethyl Amine | 3-27 | — | Triethyl Amine-5 | D5086816 | ||
| Dimethyl Amine | 3-27 | — | Triethyl Amine-5 | D5086816 | ||
| Dimethylbutane | 100-4900 | — | Hexane-20 | D5086832 | ||
| Dimethyl Hydrazine | 0.1-3 | 0.5-10 | Hydrazine-0.1 | D5086861 | ||
| Ethyl Acetate | 200-3000 | — | Ethyl Acetate-200 | 10024253 | ||
| Ethyl Alcohol | Warning Marks | — | Alcohol-A | D5085773 | ||
| Ethyl Alcohol | 100-6000 | — | Ethanol-100 | D5086818 | ||
| Ethyl Amine | 4-55 | — | Triethyl Amine-5 | D5086816 | ||
| Ethyl Benzene | Warning Marks | — | Aromaten-A | D5085770 | ||
| Ethyl Benzene | 5-1800 | — | Tol.-5 | D5085828 | ||
| Ethyl Mercaptan | 0.5…100 | 10 – 100 PPM | Ethyl Mercaptan-0,5 | D5086815 | ||
| Ethylene | 25-5000 | — | Ethylene-50 | D5086833 | ||
| Ethylene | Warning Marks | — | Benzin-A | D5085769 | — | |
| Ethylene Diamine | 5-27 | — | Triethyl Amine-5 | D5086816 | ||
| Ethylene Glycol | 10-180 mg/m3 | — | Ethylene Glycol-10 | D7086887 | — | |
| Extraction Gasolines | Qualitative | — | BNZ-Test | D5085807 | ||
| Formaldehyde | 0.2-2.5 | 0.1-2.5 | Formaldehyde-0.1 | D7086862 | ||
| Formic Acid | 2-160 | — | Acetic Acid-1 | D5086821 | ||
| Furfuryl Alcohol | 170-1500 | — | Phenol-1 | D5086838 | ||
| Gasoline | 30-6000 | — | Gasoline-30 | D5085898 | ||
| Gasoline | 100 – 3000 mg/m3 | — | Gasoline-100 | D7086865 | — | |
| Gasoline | Warning Marks | — | BNZ-Test | D5085807 | ||
| Gasoline | Warning Marks | 100 PPM | Benzin-A (Gasoline-A) | D5086769 | — | |
| Heptane | 20-2600 | — | Hexane-20 | D5086832 | ||
| Heptane | Warning Marks | — | Benzin-A | D5085769 | ||
| Hexane | Warning Marks | — | BNZ-Test | D5085807 | ||
| Hexane | 20-3200 | — | Hexane-20 | D5086832 | ||
| Hexane | Warning Marks | — | Benzin-A | D5085769 | ||
| Hydrocarbon | 0.1-1.3% | — | Hydrocarbon-0.1% | D7086891 | — | |
| Hydrocarbon | 2-24 mg/l | — | Hydrocarbon-2 | D7086888 | — | |
| Hydrocarbon | 0.2-3% | — | Hydrogen-0.2% | D7086895 | ||
| Hydrogen Chloride | 5-50 | 1-50 | HCl-1 | D5085846 | ||
| Hydrogen Chloride | 50-500 | 50-5000 | HCl-50 | D5086858 | ||

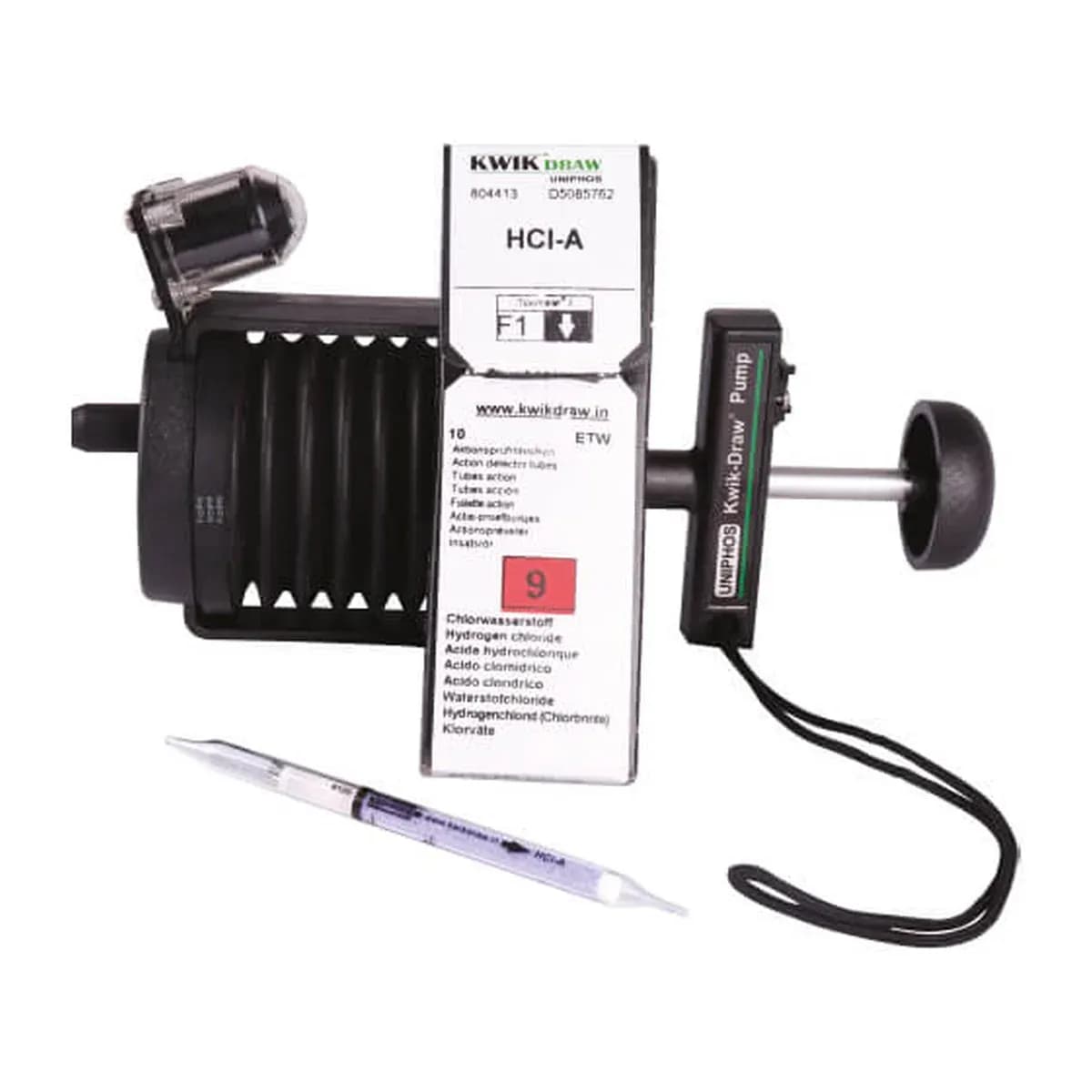

| Hydrogen Chloride | Warning Marks | — | HCl-A | D5085762 | ||
| Hydrazine | 0.05-10 | — | Hydrazine-0.1 | D5086861 | ||
| Hydrogen Cyanide | 2…50 | 5 – 50 PPM | HCN-2 | D5085824 | ||
| Hydrogen Cyanide | Warning Marks | — | HCN-A | D5085756 | ||
| Hydrogen Flouride | 1…50 | 5 – 50 PPM | HF-1 | D5086830 | ||
| Hydrogen Peroxide | 0.1-3 | — | H2O2-0.1 | D7086880 | — | |
| Hydrogen Sulfide | 0.1-6 | — | H2S-0.1 | 10023818 | ||
| Hydrogen Sulfide | 1-200 | — | H2S-1 | D5085826 | ||
| Hydrogen Sulfide | 10-200 | 1-200 | H2S-1C | D7086877 | — | |
| Hydrogen Sulfide | 2-200 | — | H2S-2M | D7086882 | — | |
| Hydrogen Sulfide | 2-600 | — | H2S-2 | D7086873 | — | |
| Hydrogen Sulfide | 100-4000 | — | H2S-100 | D5085827 | ||
| Hydrogen Sulfide | 0.1-4% | — | H2S-0.4% | D5086857 | ||
| Hydrogen Sulfide | 0.2-7% | — | H2S-0.2% | D7000003 | ||
| Hydrogen Sulfide | 0.2-7% | — | H2S-0.2%(200 tubes) | D7000903 | — | |
| Hydrogen Sulfide | 2-40% | — | H2S-2% | D7086866 | ||
| Hydrogen Sulfide | Warning Marks | — | H2S-A | D5085764 | ||
| Hydrogen Sulfide | 0.02-0.07% | 0.2-7% | H2S+SO2 0.2% | D7086894 | — | |
| Isobutane | 200-4200 | — | Propane-200 | D5086831 | ||
| Isobutyl Amine | 3-36 | — | Triethyl Amine-5 | D5086816 | ||
| Isobutylene | 400-2600 | — | Ethylene-50 | D5086832 | ||
| Isobutyl Methyl Ketone | 50-400 | — | MEK-50 | D5086837 | ||
| Isooctane | 100-3000 | — | Hexane-20 | D5086832 | ||
| Isopropyl Amine | 5-30 | — | Triethyl Amine-5 | D5086816 | ||
| Isopropyl Mercapton | 0.5-5.5 | — | Ethyl Mercaptan-0.5 | D5086815 | — | |
| Kerosine | Warning Marks | — | BNZ-Test | D5085807 | ||
| Kerosine | Qualitative | — | QL | D5085810 | ||
| Ketones | Qualitative | — | QL | D5085810 | ||
| Light Fuels | Warning Marks | — | BNZ | D5085807 | ||
| Ligroin | 30-6000 | — | Gasoline-30 | D5085898 | ||
| Ligroin | Qualitative | — | QL | D5085810 | ||
| Ligroin | Warning Marks | — | BNZ | D5085807 | ||
| Liquid Petroleum Gas | 200-4000 | — | Propane-200 | D5086831 | ||
| Liquid Petroleum Gas | Qualitative | — | QL | D5085810 | ||
| Mercaptans | 0.5-100 | — | Ethyl Mercaptan-0.5 | D5086815 | ||
| Mercury | 0.1-0.8 mg/m3 | — | Hg-0.01 | D5085843 | ||
| Methane | Warning Marks | — | Erdgas | D5086846 | — | |
| Methyl Alcohol | 100-2350 | — | Ethanol-100 | D5086818 | ||
| Methyl Alcohol | 100-2500 | — | Methyl Alcohol-100 | D5094818 | ||
| Methyl Alcohol | Warning Marks | — | Alcohol-A | D5085773 | ||
| Methyl Amine | 4-55 | — | Triethyl Amine-5 | D5086816 | ||
| Methyl Bromide | 1…140 | 10 – 140 PPM | Methyl Bromide-2 | D5086845 | — | |
| Methyl Bromide | 200…20000 | 200 – 8000 PPM | Methyl Bromide-200 | D5086847 | ||
| Methyl Bromide | 2-8 | 0.2-8 | Methyl Bromide-0.2 | D7086878 | — | |
| Methyl Butane | 50-3000 | — | Hexane-20 | D5086832 | ||
| Methyl Cyclohexane | 80-4900 | — | Hexane-20 | D5086832 | ||
| Methyl Cyclopentane | 150-3700 | — | Hexane-20 | D5086832 | ||
| Methyl Ethyl Ketone | 50-4000 | — | MEK-50 | D5086837 | ||
| Methyl Hydrazine | 0.2-4 | — | Hydrazine-0.1 | D5086861 | ||
| Methyl Mercapton | 0.5-5 | — | Ethyl Mercaptan-0.5 | D5086815 | ||
| Methyl Methacrylate | 1.5…115 | — | Acrolein-0.1 | 10017882 | ||
| Methyl Pentane | 150-4500 | — | Hexane-20 | D5086832 | ||
| Mineralic Oil[Compressor Oil] | Warning Marks | — | Oil-HP | 10040887 | ||
| Multigas | Color Marks | — | Multigas-I | D7094870 | ||
| Multigas | Color Marks | — | Multigas-IV | D7094871 | ||
| Natural Gas | Warning Marks | — | Erdgas | D5086846 | ||
| Nitrogen Dioxide | 0.5-50 | — | NO2-0.5 | D5085805 | ||
| Nitrogen Dioxide | 2…140 | 5 – 140 PPM | NO2-2 | D5085867 | ||
| Nitrous Fumes | 0.5-50 | — | Nitr-0.5 | D5085818 | ||
| Nitrous Fumes | 2…140 | 5 – 140 PPM | Nitr-2 | D5085844 | ||
| Nitrous Fumes | 10-300 | — | Nit-10 | D5085808 | ||
| Nitrous Fumes | 50-3000 | — | Nitr-50 | D5085809 | ||
| Nitrous Fumes | Warning Marks | — | Nitr-A | D5085760 | ||
| Nitrous Fumes | 0.5-50 | — | Nitr-0.5 | D5085818 | ||
| Nitrous Fumes | 0.2-2.5 | 0.2-6 | Nitr-HP | D5086850 | ||
| NO2+NO | 2.5-200 | — | NO2-2.5 & NO-2.5 | D7086863 | ||
| Nonane | 50-2800 | — | Hexane-20 | D5086832 | ||
| Nonane | Warning Marks | — | Benzin-A | D5085769 | ||
| Octane | 50-3000 | — | Hexane-20 | D5086832 | ||
| Octane | Warning Marks | — | Benzin-A | D5085769 | ||
| Octane | 10-2500 | — | Petroleum Hydrocarbon-10 | D7086876 | — | |
| Other Organic Compounds | Qualitative | — | QL | D5085810 | ||
| Ozone | 0.5-5 | 0.05-5 | Ozone-0.05 | D5086828 | ||
| Oxygen | 3-24% | — | Oxygen-3 | D7086864 | ||
| Pentachlorethane | 10-300 | — | Trichlorethane-5 | D5086834 | ||
| Pentane | 50-3900 | — | Hexane-20 | D5086832 | ||
| Pentane | Warning Marks | — | Benzin-A | D5085769 | ||
| Petroleum Distillates | 30…6000 | 300 – 6000 PPM | Gasoline-30 | D5085898 | ||
| Petroleum Distillates | Qualitative | — | QL | D5085810 | ||
| Petroleum Distillates | Warning Marks | — | BNZ | D5085807 | ||
| Petroleum Hydrocarbon(n-Octane) | 10-2500 | — | Petroleum Hydrocarbon-10 | D7086876 | — | |
| Petroleum Ether | Warning Marks | — | BNZ | D5085807 | ||
| Phenol | 1-15 | 1-25 | Phenol-1 | D5086838 | ||
| Phosgene | 1-20 | 0.1-20 | Phosgene-0.1 | D5085854 | ||
| Phosgene | Warning Marks | — | Phosgene-A | D5085761 | ||
| Phosphine | 0.05…3.0 | 0.1 – 3 PPM | PH3-0.05 | D5085829 | ||
| Phosphine | 0.1-100 | — | PH3-0.1 | D5085830 | ||
| Phosphine | 50-2000 | — | PH3-50 | D5085831 | ||
| Propane | 200-4000 | — | Propane-200 | D5086831 | ||
| Propyl Alcohol | 200-5000 | — | Ethanol-100 | D5086818 | ||
| Propyl Alcohol | Warning Marks | — | Alcohol-A | D5085773 | ||
| Propyl Amine | 5-30 | — | Triethyl Amine-5 | D5086816 | ||
| Propyl Mercaptan | 0.7-8 | — | Ethyl-Mercaptane-0.5 | D5086815 | ||
| Propylene | 20-5000 | — | Ethylene-50 | D5086833 | ||
| Propylene | Warning Marks | — | Benzin-A | D5085769 | ||
| Styrene | 10-300 | — | Styrene-10 | D5086819 | ||
| Sulfur Dioxide | 2-30 | 0.5-30 | SO2-1 | D5085803 | ||
| Sulfur Dioxide | 5…200 | 20 – 200 PPM | SO2-5 | D5085813 | ||
| Sulfur Dioxide | 100…4000 | 500 – 4000 PPM | SO2-100 | D5085825 | ||
| Sulfur Dioxide | Warning Marks | — | SO2-A | D5085763 | ||
| Sulfur Flouride | 0.1-15 | — | SF6 | D5085838 | ||
| Tetrabromoethane | 5-200 | — | Trichloroethane-5 | D5086834 | ||
| Tetrachloroethane | 50-1000 | — | Trichloroethane-5 | D5086834 | ||
| Tetrachloroethylene | 5-200 | 10-500 | Per-5 | D5085865 | ||
| Tetrachloroethylene | Warning Marks | — | CKW-A | D5085771 | ||
| Toluene | 5-1000 | — | Tol-5 | D5085828 | ||
| Toluene | 25-300 | 30-750 | Aromatic HC | D5086811 | ||
| Toluene | Warning Marks | — | Aromatic-A | D5085770 | ||
| Tribromomethane | 7-200 | — | Trichloroethane-5 | D5086834 | ||
| Trichloroethane | 5-1500 | — | Trichloroethane-5 | D5086834 | ||
| Trichloroethane | 10…170 | — | 1.1.2-Trichloroethane | D5094834 | ||
| Trichloroethylene | 5…250 | 20 – 250 PPM | Tri-5 | D5085842 | ||
| Trichloroethylene | Warning Marks | — | CKW-A | D5085771 | ||
| Trichloromethane | 8-100 | — | Trichloroethane-5 | D5086834 | ||
| Trichloropropane | 10-1200 | — | Trichloroethane-5 | D5086834 | ||
| Triethyl Amine | 5-30 | — | Triethyl Amine-5 | D5086816 | ||
| Trimethyl Amine | 5-30 | — | Triethyl Amine-5 | D5086816 | ||
| Trimethyl Pentane | 100-3000 | — | Hexane-20 | D5086832 | ||
| Vinyl Chloride | 1…200 | 10 – 200 PPM | VC-1 | D5085837 | ||
| Vinyl Chloride | Warning Marks | — | CKW-A | D5085771 | ||
| Water Vapour | 5-160 mg/m3 | — | H2O-HP[mg/m3] | D5085849 | ||
| Water Vapour | 10-200 | — | H2O-HP[ppm] | D5085851 | ||
| Water Vapour | 5-200 mg/m3 | — | H2O-HP[mg/m3] | D7086872 | ||
| Water Vapour | 100-1000 mg/m3 | — | H2O-MP | D5086851 | ||
| Water Vapour | 10-100% r.h. | — | H2O[r.h.%] | D5086849 | ||
| Water Vapour | 1-40 mg/l | — | H2O-1 | D7086875 | — | |
| Water Vapour | 0.1-2 mg/l | — | H2O-0.1 | D7086879 | — | |
| Water Vapour | 3-60 lb/mmcf | — | H2O-3 | D7086892 | — | |
| Water Vapour | 20…1500 mg/m3 | 35-500 mg/m3 | H2O-HP-20[mg/m3] | D7086900 | — | |
| Xylene | 10….800 | 10 – 800 PPM | Aromatic HC | D5086811 | ||
| Xylene | 10-400 | — | Xylene-10 | D7086874 | ||
| Xylene | 5-2500 | — | Tol-5 | D5085828 | ||
| Xylene | Warning Marks | — | Aromatic-A | D5085770 |
Ranges are as given in the manufacturer’s table; where no unit is stated, see the tube datasheet.
Documents and certificates
Areas of use
Petrochemical / refineryChemicalFoodEnergyMetal / welding
