Cx-Series · Handheld
Cx-Series
The FLIR Cx-Series is a range of pocket-portable thermal cameras with four models. IR resolution ranges from 128 × 96 to 320 × 240 pixels. The Cx5 is presented for hazardous environments.
Description and features
The FLIR Cx-Series is a range of pocket-portable thermal cameras with four models. IR resolution ranges from 128 × 96 to 320 × 240 pixels. The Cx5 is presented for hazardous environments.
01Four models: Cx5, C8, C5, C3-X
02IR resolution: 128 × 96 to 320 × 240 pixels (model dependent)
03MSX image enhancement
04Ignite cloud connectivity (Wi-Fi)
Technical data
- BRAND
- FLIR
- MODEL
- Cx-Series
- IMAGE FUSION
- Yes
- CONNECTION
- Wi-Fi
Models in series
| Field of view | NETD | Model | Display | Accuracy | Temperature range | IR resolution | Visual camera |
|---|---|---|---|---|---|---|---|

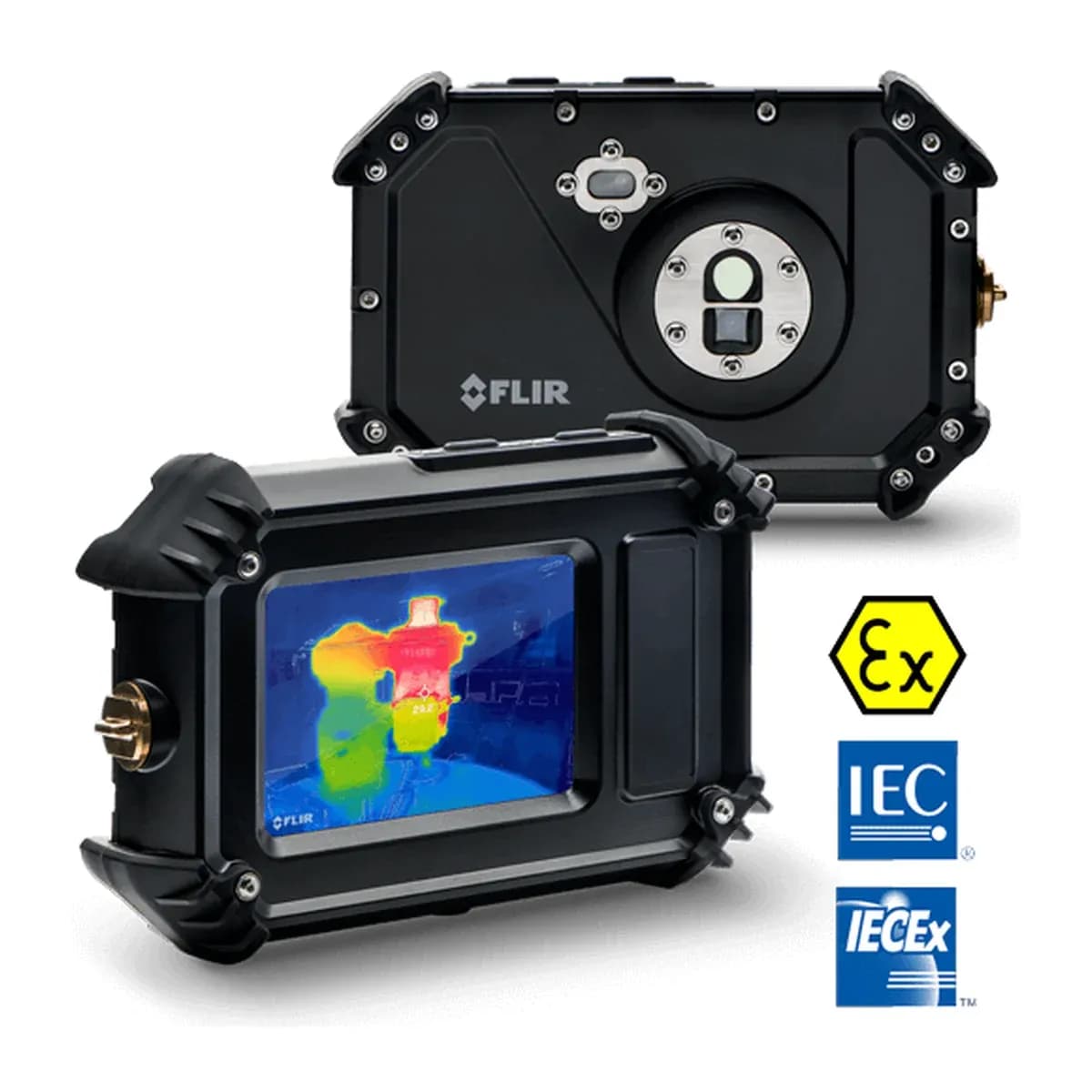

| — | — | Cx5 | 3.5-inch touchscreen | 0°C to 100°C: ±5°C (±9°F); 100°C to 400°C: ±5% | up to 400°C (752°F) | 160 × 120 | 5 MP |

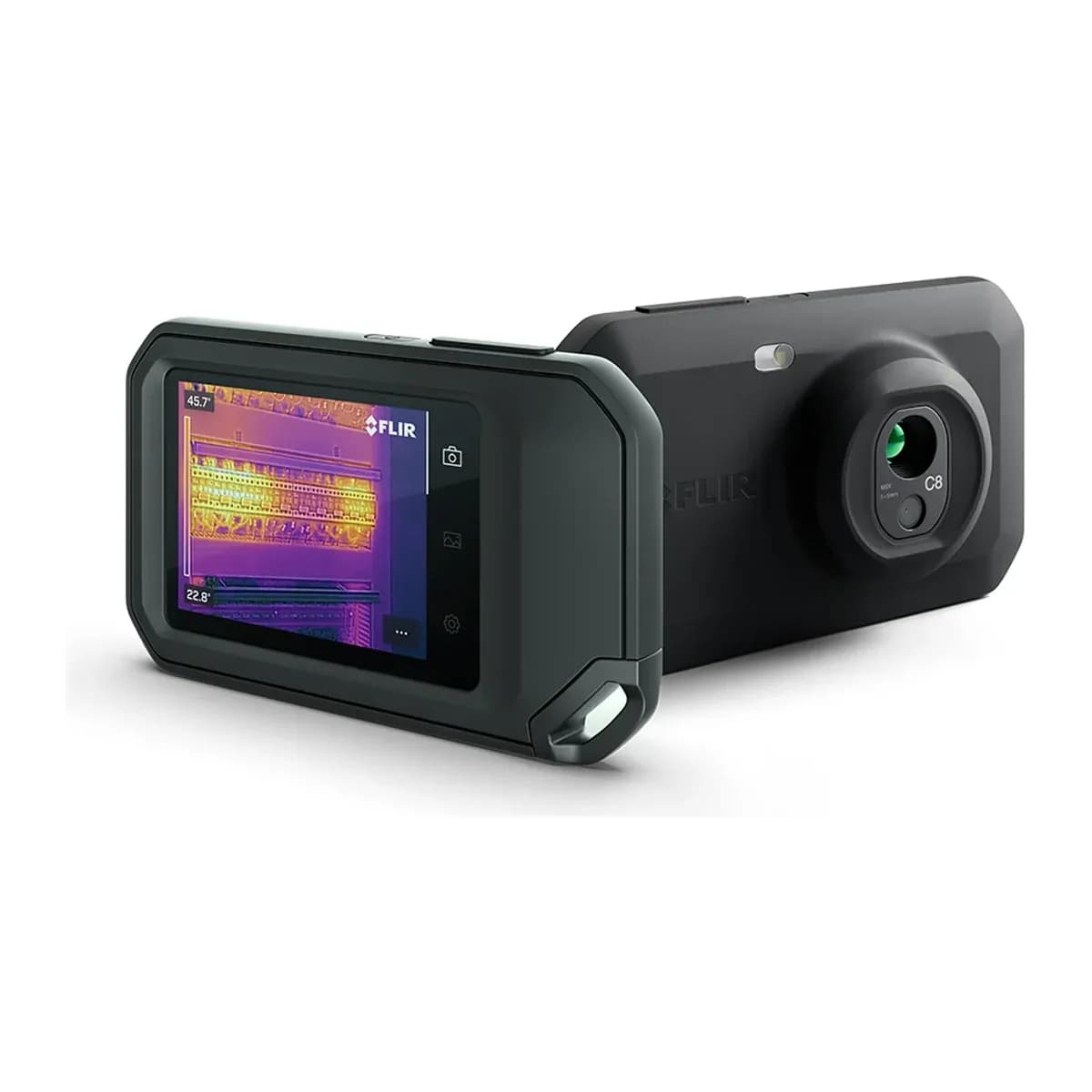

| 35° × 27° | <50 mK | C8 | 3.5 in, auto orientation | — | up to 450°C (842°F) | 320 × 240 pixels | 5 MP, fixed focus |
| — | — | C5 | — | 0 to 100°C: ±3°C (±5.5°F); 100 to 400°C: ±3% | up to 400°C (752°F) | 160 × 120 (19,200 pixels) | 5 MP |
| 53.6° | <70 mK | C3-X | — | 0 to 100°C: ±3°C (±5.5°F); 100 to 300°C: ±3% | up to 300°C (572°F) | 128 × 96 pixels | 5 MP resolution |
