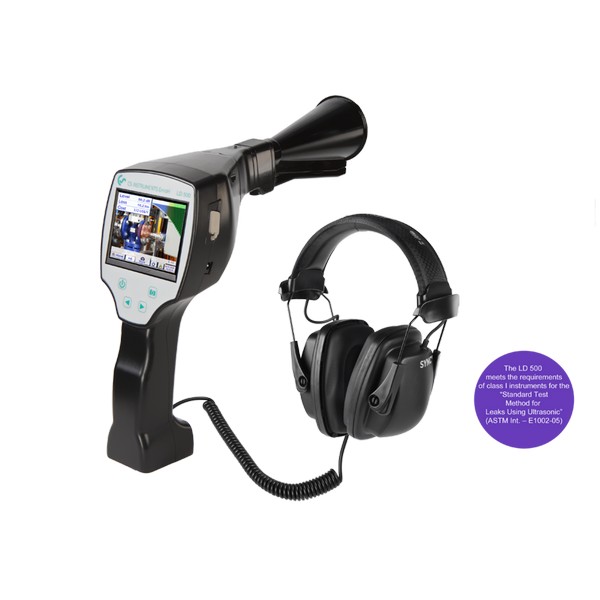

Leak detector with camera LD 500/510

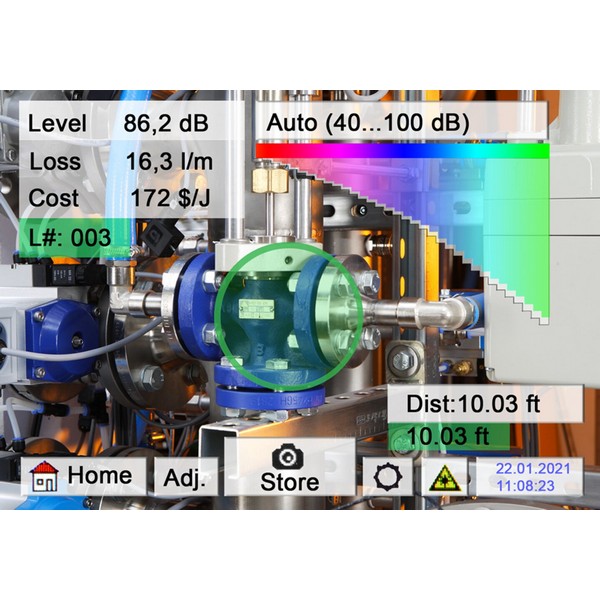

The new leak meters LD 500/510 with integrated camera and leakage calculation are ideal measuring instruments which help to find and document even smallest leakages (0.1 l/min corresponds to approx. 1 € p. a.) easily even in far distances.
LD 510 is the worldwide first leak meter with an additional freely assignable sensor input for all CS sensors. In addition to the leakage measurement and detection also all necessary measurements with regards to dew point, flow, pressure, and temperature ... can be carried out.
| Marka |
CS Instruments |
|---|
Açıklama
İlgili ürünler
FA 500 – Dew point sensor with integrated display and alarm relay
With the FA 500 you make the right choice for highest precision in dew point measurements. Our sensor offers a wide span of measuring ranges perfectly matched to the needs of different compressed air dryers. Rely on us for accurate results in any situation. Monitoring a compressed air dryer is critical to increase energy efficiency, ensure product quality, prevent machine damage, identify maintenance needs and achieve cost savings. This contributes to the smooth operation of compressed air systems in various industrial applications.
Leak detector LD 450
If gases escape through leaks in pressurized pipe systems (e.g. non-tight screwed connections, corrosions and so on), ultrasonic noises are generated. By means of LD 450, even the smallest leakages which cannot be heard by the human ear and which are not visible due to their size can be detected even from distances of several meters. LD 450 transforms the inaudible signals into a frequency which can be identified by human beings. By means of the comfortable soundproof headset, these noises can be detected even in extremely noisy environments. The LD 450 leak detector is the advancement of the proven LD 300 and LD 400 and it impresses with its significantly refined sensor technology and its improved support in the tracing of leaks. By means of the integrated laser pointer, which serves for target heading, the leak can be localised more accurately. Through the use of a specially designed acoustic trumpet, a better bundling of the sound waves is achieved. This trumpet acts like a directional microphone, which bundles ultrasonic waves and thus improves the acoustic behavior. Due to the special design of the acoustic trumpet, the use of the laser pointer is not hindered. The LD 450 meets the requirements of class I instruments for the norm “Standard Test Method for Leaks with Ultrasound” (ASTM Int. - E1002-05)
DP 500 – Portable dew point meter with integrated data logger
The DP 500 Dew point meter with integrated Data logger is the ideal Portable Service instrument for Dew point measurement of all compressed air dryers down to -80°Ctd dew point. The 3.5" graphic display with touchscreen makes operation child's play. The graphic display of the coloured measurement curves is unique. Ideal for Measuring the current Dew point and for graphically displaying the dew point curve and the switching behaviour of the dryer over a longer period of time. Up to 100 million Measured values can be saved with date and measurement location name. Measured values can be transferred to a PC via USB stick. The data can be conveniently analysed using the CS Basic software (linked below). Measurement data and service reports can therefore be created quickly and easily at any time.
DP 510 – Portable dew point meter with third-party sensor
and integrated data logger. With DP 510 it is possible to performing all measuring tasks with one instrument. It disposes of all functions of DP 500 and has an additional freely assignable sensor input. Additionally to the internal dew point measurement one further optional sensor can be connected. So you could meet nearly all industrial measuring tasks.
VA 500 – Flow meter for compressed air and gases
Recording and reducing energy costs and CO2 emissions while increasing the sustainability of any compressed air system. With our VA500 it is possible to monitor your consumption and analyze your leakage flows with just one measuring device. Due to its design, it is also ideal for mobile measurements.
VA 570 – Thermal mass flow meter for consumption measurement
Record and reduce your energy costs and increase your Sustainability with the VA 570 flow meter. Monitor your Consumption and analyse your leakage rate with a permanently installed flow meter in distribution stations, in front of individual departments or for billing purposes of individual Consumers.
