Ideal for all types of compressed air dryers with different measuring ranges such as -80…+20°Ctd; -60…+30°Ctd; -20…+50°Ctd Sensor element insensitive against condensation and water Maximum pressure 500 bar (special version) Long-term stable and drift-proof, thus optimized calibration intervals Gas-independent measurement, also suitable for other non-corrosive gases Fast response time, especially in case of moisture ingress BSP- or NPT-Threads Protection class IP 65 Analog output 4…20 mA and Modbus RTU (RS 485) interface, contact relay with limit value adjustable via keys (max. 60 VDC, 0.5A) Optional: Modbus TCP (Ethernet), Modbus TCP PoE (Ethernet) or M-Bus interface Measured values available in different units, pressure dew point [°Ctd], temperature [°C], rel. humidity [%rh], abs. humidity [g/m³], moisture content [g/kg], moisture content V/V [ppmV/V], water vapor partial pressure [hPa], atmospheric dew point [°Ctd.atm] On-site sensor diagnostics with handheld device or CS Service Software

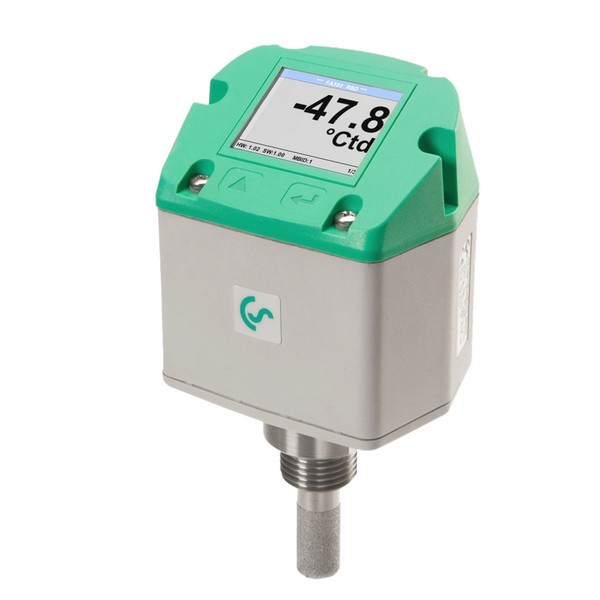

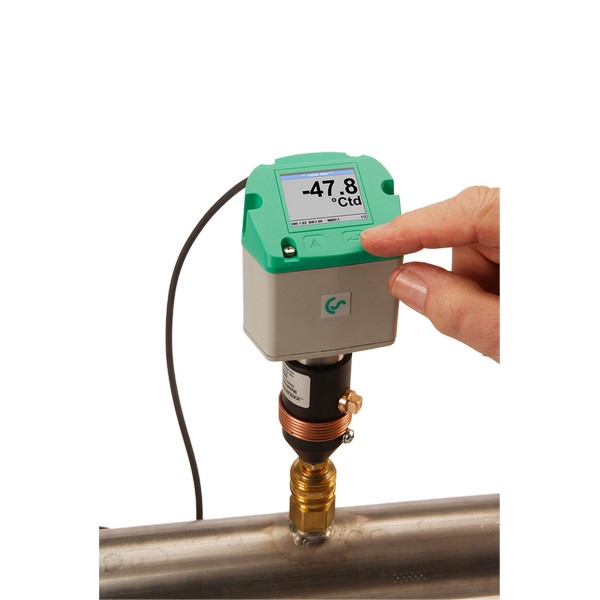

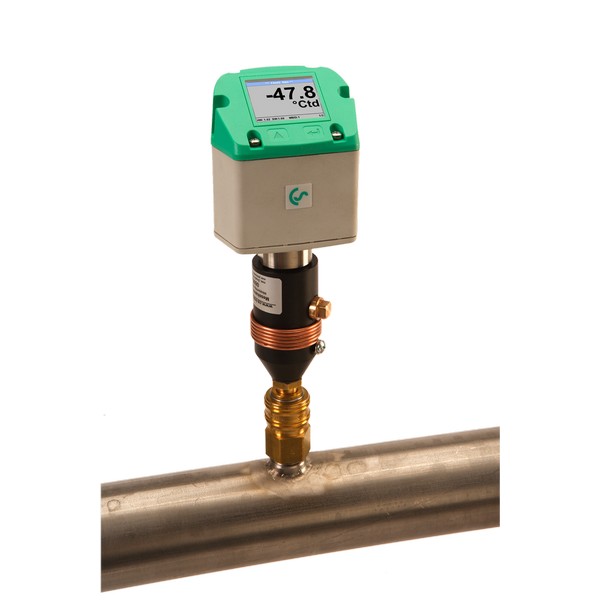

FA 500 – Dew point sensor with integrated display and alarm relay
| Marka |
CS Instruments |
|---|
