Flame 3000
4–20 mARelay

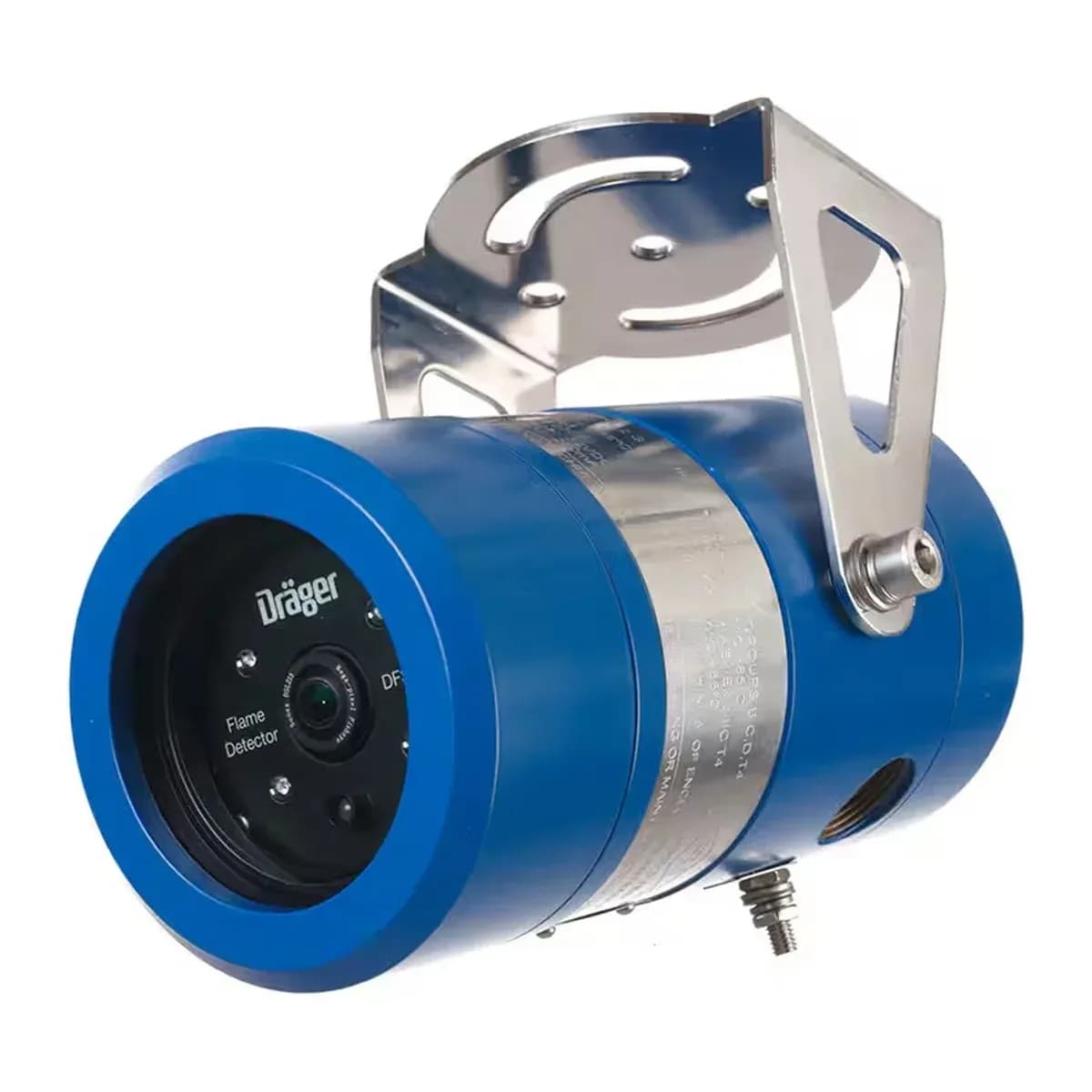

Dräger Flame 3000 is an imaging-based, explosion-proof flame detector. It detects n-heptane fires of 0.1 m² or more at 60 m; typical response time is 4 seconds. It provides 4–20 mA and relay outputs, IP66 / NEMA 4X protection, an 18–32 V DC supply and operation from -60 °C to 85 °C; ATEX, IECEx and FM approved.
- OUTPUTS
- 4–20 mA · Relay
Description and features
Dräger Flame 3000 is an imaging-based, explosion-proof flame detector. It detects n-heptane fires of 0.1 m² or more at 60 m; typical response time is 4 seconds. It provides 4–20 mA and relay outputs, IP66 / NEMA 4X protection, an 18–32 V DC supply and operation from -60 °C to 85 °C; ATEX, IECEx and FM approved.
01Imaging-based, explosion-proof flame detector
0260 m detection distance for a 0.1 m² n-heptane fire
034–20 mA and relay outputs
04Powder-coated aluminium or stainless steel housing, IP66 / NEMA 4X
05Tested with the FS-5000 flame simulator
Technical data
- BRAND
- Dräger
- MODEL
- Flame 3000
- OUTPUTS
- 4–20 mA · Relay
- DETECTION RANGE
- 60 m (200 ft), n-heptane fire of 0.1 m2 or greater
- RESPONSE TIME
- Typically 4 seconds
- SIL LEVEL
- None
- IP RATING
- IP66 / NEMA 4X
- OPERATING TEMPERATURE
- -60–85 °C
- POWER SUPPLY
- 18 to 32 V DC (24 V DC nominal)
- HOUSING
- Aluminium or stainless steel, powder-coated
- OTHER APPROVALS
- ATEX, IECEx, CE marking, GOST (EAC), Performance approval FM3260, Shipping approval (DNV Type Approval), FM
- DIMENSIONS
- 22x10 cm
- WEIGHT
- 13.23 lb (6 kg)
- COMPATIBLE ITEMS
- Dräger FS-5000
