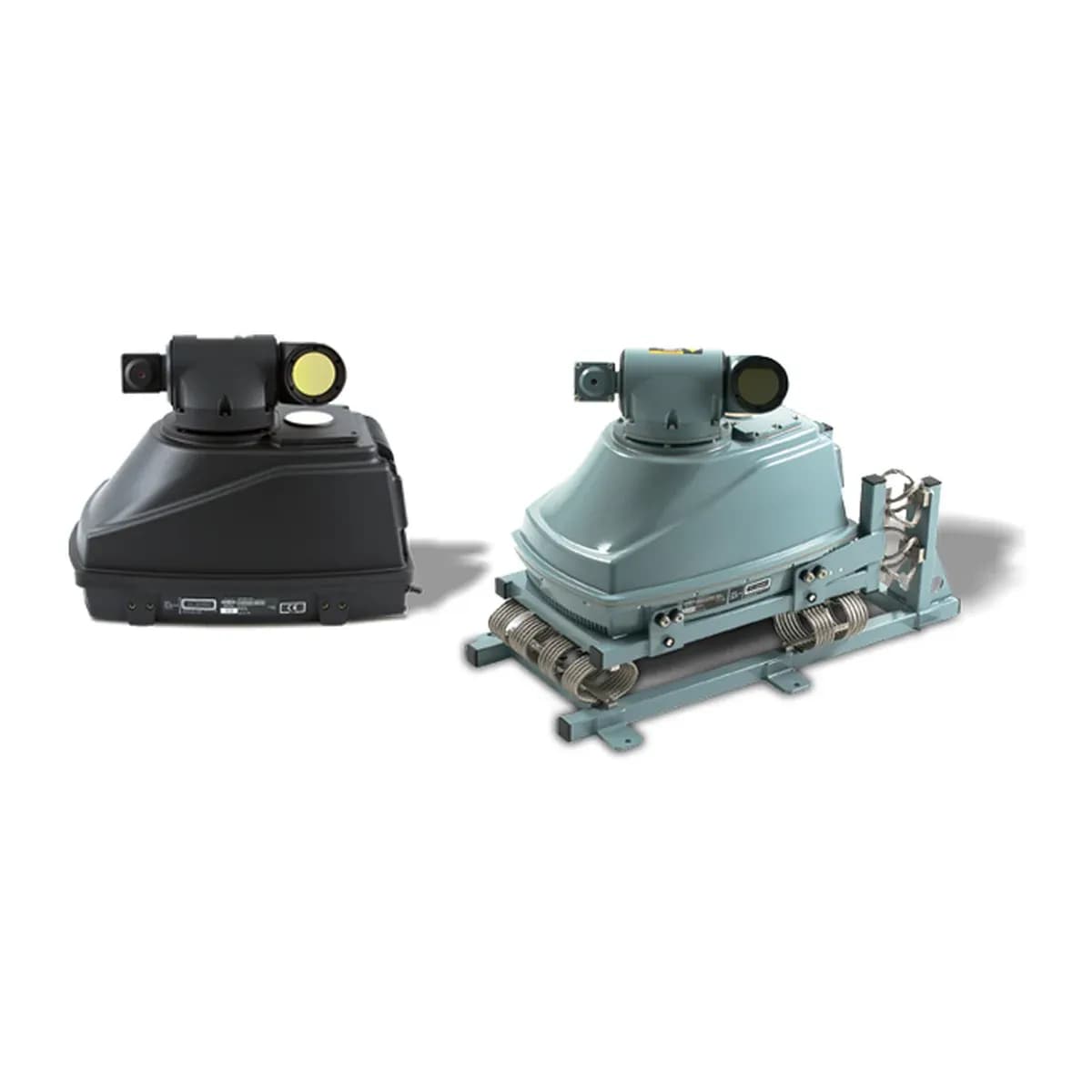

RAPIDplus Standoff Chemical Detector

CWATIC

RAPIDplus is a standoff system that automatically detects, identifies and monitors all known chemical warfare agents and important toxic industrial chemicals at long distances. Using passive FT-IR technology, it scans 360° and works at distances up to 5000 metres. It can be used on a stationary tripod or on a moving vehicle without loss of performance.

DETECTED THREATS: Chemical warfare agents (CWA) · Toxic industrial chemicals (TIC)
DEPLOYMENT: Standalone · Vehicle / ship mounted
DETECTION TECHNOLOGY: Passive infrared standoff sensing (FT-IR)

Description and features

01Standoff detection up to 5000 metres

02Identifies and monitors CWAs and TICs

03Static or on-the-move operation

04Hardened to MIL 810G and 461F

Technical data

BRAND: Bruker
MODEL: RAPIDplus Standoff Chemical Detector
DETECTED THREATS: Chemical warfare agents (CWA) · Toxic industrial chemicals (TIC)
DEPLOYMENT: Standalone · Vehicle / ship mounted
DETECTION TECHNOLOGY: Passive infrared standoff sensing (FT-IR)
SENSITIVITY: Low ppm range; at distances up to 5000 m, 360° scanning
DATA INTERFACE: Ethernet
MAINTENANCE AND CALIBRATION: Requires minimal training and maintenance
RUGGEDNESS: Fully hardened to MIL 810G and 461F standards
APPLICATIONS: Detecting ammonia in industrial complexes from up to several kilometres
ACCESSORIES AND OPTIONS: Real-time colour wide-dynamic-range camera; Video Overlay Mode (VOM)
