CS Instruments |
|---|

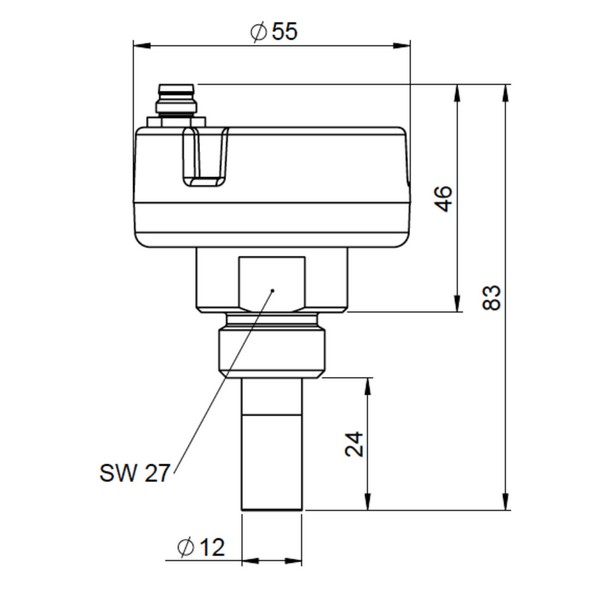

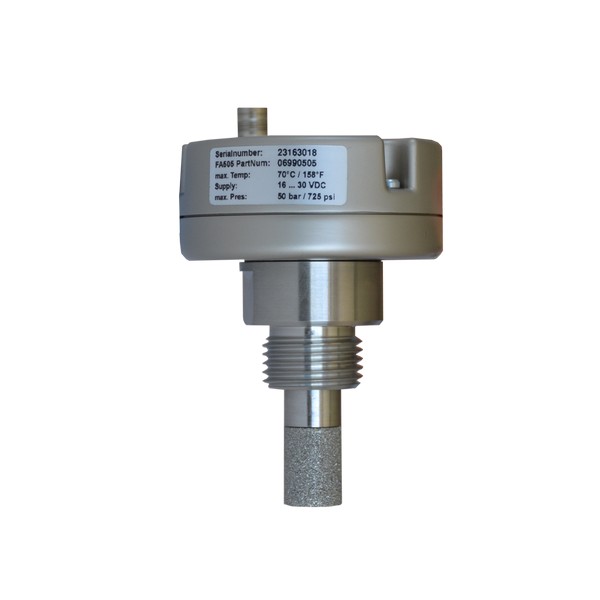

Optimized design for tight space conditions in drying systems Measuring range -80…20°Ctd Extremely long-term stable Analogue output 4…20 mA or modbus-RTU interface Condensation insensitive Quick response time Pressure-tight up to 350 bar (special version) NEW: Higher resolution of the sensor signal due to improved evaluation electronics NEW: Sensor diagnosis on site by means of hand-held instrument or CS Service Software
The CMM 500 Compressor Master Meter is a new type of reference flow measuring device that has been specially developed for high-precision measuring of the capacity of compressors and for billing compressed air. The CMM 500 can be used both directly downstream of the compressor for measuring wet compressed air and as a compressed air meter for consumption measurement and billing of dry compressed air. The large measuring span of 1:130 and an accuracy of <0.5 % of the measured value (0.2 Qmax to Qmax) are unique. Service or maintenance can be carried out at any time via the mounting plate (zero point correction, condensate drain, sensor replacement for calibration), even during operation under pressure.
Record and reduce your energy costs and increase your Sustainability with the VA 570 flow meter. Monitor your Consumption and analyse your leakage rate with a permanently installed flow meter in distribution stations, in front of individual departments or for billing purposes of individual Consumers.
The DP 500 Dew point meter with integrated Data logger is the ideal Portable Service instrument for Dew point measurement of all compressed air dryers down to -80°Ctd dew point. The 3.5" graphic display with touchscreen makes operation child's play. The graphic display of the coloured measurement curves is unique. Ideal for Measuring the current Dew point and for graphically displaying the dew point curve and the switching behaviour of the dryer over a longer period of time. Up to 100 million Measured values can be saved with date and measurement location name. Measured values can be transferred to a PC via USB stick. The data can be conveniently analysed using the CS Basic software (linked below). Measurement data and service reports can therefore be created quickly and easily at any time.
The new leak meters LD 500/510 with integrated camera and leakage calculation are ideal measuring instruments which help to find and document even smallest leakages (0.1 l/min corresponds to approx. 1 € p. a.) easily even in far distances. LD 510 is the worldwide first leak meter with an additional freely assignable sensor input for all CS sensors. In addition to the leakage measurement and detection also all necessary measurements with regards to dew point, flow, pressure, and temperature ... can be carried out.
