Kesinlik < 0.5 % confirmed by DIN EN ISO/IEC 17025 certificate
Large measuring span > 1:130
Very fast measuring, detection of peaks, no transient response as with ultrasonic gas meters
No long inlet sections required
Extremely low pressure loss, with max. flow < 70 mbar
Can be used for practically all gases (by simply entering the respective gas density)
Pressure range up to 16 bar (g), 30 bar (g)/100 bar (g) on request
Direct display of standardised volume Nm3, Nm3/h, according to DIN 1343 or ISO 1217 compressed air standard
Further Measured values: Temperature in °C or F, Pressure, Differential pressure in bar, psi etc.
All common output signals: Modbus RTU, Modbus TCP, POE, MBus, 4 ... 20 mA
ATEX version for highly flammable and combustible Gases in progress

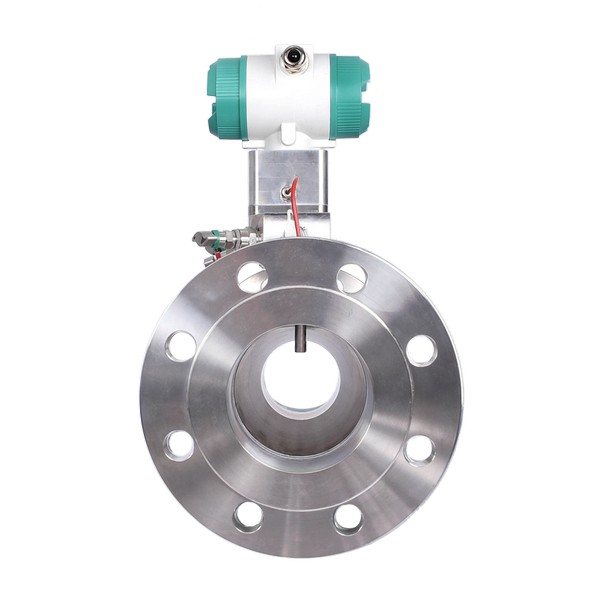

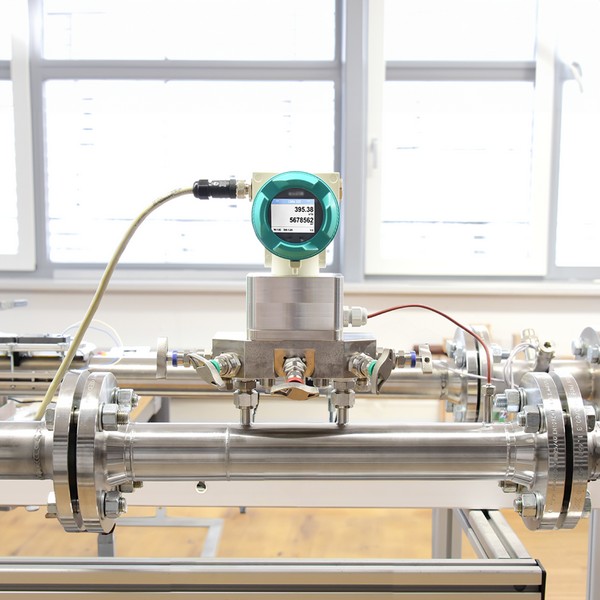

CMM 500 – High-precision measuring of the capacity of compressors
