Özellikleri
EASILY INSPECT ANYWHERE

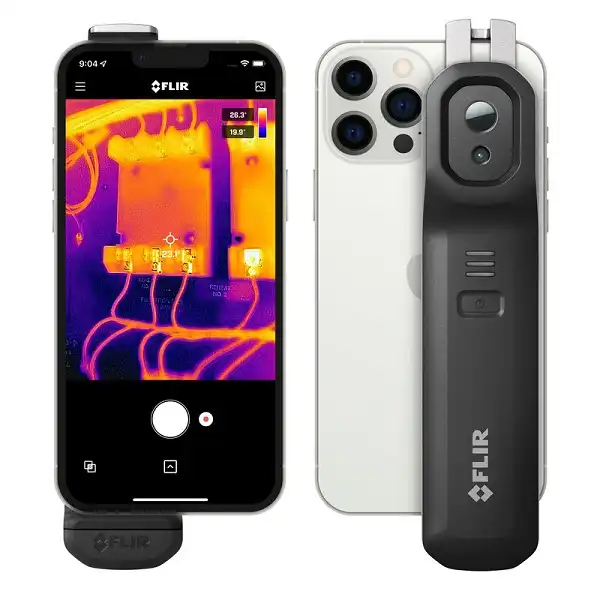

Conveniently scan targets out-of-reach or out-of-view while comfortably viewing images from your mobile device, or clip the FLIR ONE Edge Pro to your smart device for one-handed operation with a natural grip.
HIGH-QUALITY IMAGES AND PERFORMANCE
Take high-quality thermal images, easily identify targets, and recognize where problems are located with FLIR MSX, VividIR, and 160 × 120 (19,200 pixels) thermal resolution.
A PROFESSIONAL TOOL
With a battery time of up to 2.5 hours and fast-charging capabilities, the FLIR ONE Edge Pro is ready when you need it. This rugged camera is IP54 rated and drop-tested from 2 meters.
MSX® Image Enhancement
The FLIR ONE Edge Series features FLIR’s unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera’s LCD.
With MSX
Without MSX
Professional Reports that Help Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.
The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.
FLIR IGNITEÇB
Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR camera. Keep your data safe in one place and easily accessible from any device.
Get More from the FLIR ONE app
The FLIR ONE Edge Series connects to your smart device through the FLIR ONE app available on Google Play and the Apple App Store, allowing you to identify thermal hot or cold spots that could indicate faults and developing issues. The app now offers step-by-step inspection guides to help you learn how to confidently identify air leaks, insulation or moisture issues, and automotive problems. Find out what to look out for and compare your findings to typical faults. Subscribing to inspection guides gives you access for a full year to support learning over time and increase your ability to inspect during the right conditions.
Get more information on device compatibility with FLIR ONE Series thermal cameras
FLIR ONE Mobile Apps for Your Unique Applications
Explore the large eco-system of available apps, or develop your existing app to integrate thermal capabilities
There is a wide range of FLIR ONE compatible mobile apps that offer a tailored solution for specific needs. Some examples include the RocketPlan app, which digitizes the claims process within restoration; the MultiSens-1234 app for plotting multiple sensor data within condition monitoring; and the ThermaFY Home app which analyzes your home’s energy efficiency. Check out all the available apps, and if you are interested in developing an app or integrating thermal into your app, create a developer account today.
Create a developer account See current approved apps
Never Worry About Your Camera Performance Again
Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.
Downloads
Özellikler
- Thermal Resolution
- 160 × 120 (19,200 pixels)
- Battery Life
- Approximately 2 hours 30 minutes
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Kesinlik
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Çalışma sıcaklığı
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
Imaging & Optical
- Adjustable MSX distance
- 30 cm — Infinity
- Focus
- Fixed 30 cm — Infinity
- Frame Rate
- 8.7 Hz
- HFOV/VFOV
- 54° ±1° / 42° ±1°
- Image Modes
- Infrared, visual, MSX
- Palette
- Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
- Shutter
- Automatic/Manual
- Thermal Resolution
- 160 × 120 (19,200 pixels)
- Thermal Sensitivity/NETD
- 70 mK
- Thermal Sensor
- Pixel size 12 µm, 8 — 14 µm spectral range
- Visual Resolution
- 640 × 480
- VividIR
- Evet
Güç
- Battery charge time
- 60–90 min for fully charged
15 min charging, from empty battery, gives 40 min
operating time
- Battery Life
- Approximately 2 hours 30 minutes
- Charging Method
- Female USB-C (5V/1A)
Measurement & Analysis
- Kesinlik
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Measurement Corrections
- Emissivity; Reflected apparent temperature (22°C / 72°F)
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
Genel
- Battery charge monitor
- 0 — 100%
- Clip Span
- 130 mm (min) / 195 mm (max)
- Compatible with FLIR software
- FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
- Device Compatibility
- iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets
- Dimensions (H x W x D)
- 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
- Remote Operation
- Up to 5 m (16.4 ft) from smart device via Wi-Fi
- Ağırlık
- 153 g (5.4 oz)
Environmental & Certifications
- sertifikalar
- RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
- Drop test
- Drop from 2 m (6.56 ft)
- Emissivity Settings
- Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
- Non-Operating Temperature
- -40°C to 70°C (-40°F to 158°F)
- Çalışma sıcaklığı
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
Communication & Data Storage
- Bluetooth
- Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
- Capture modes
- Video, Still image
- Charging
- Female USB-C (5V/1A)
- File Formats
- Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
- WiFi
- IEEE 802.11 a/b/g/n
