Faydalar
Poison-resistant and fail-safe – the DrägerSensor IR
is resistant to poisonous chemicals that can shorten a catalytic pellistor’s life. Long life optics have lower
maintenance costs compared to pellistors. IR technology is inherently fail-safe without any undisclosed
drawbacks. These benefits provide improved performance with excellent long-term stability and fast response
times.
Same design, same operating principles
and user interface. This allows for uniform operation with reduced training and maintenance requirements. The
backlit display shows status information clearly with quick access to functions using a non-intrusive magnetic
wand. The gas concentration and measurement unit are displayed during normal operation. Coloured LEDs
(green, yellow and red) provide additional alarm and status information.
Harici ekipmanı kontrol etmek için üç röle
The Dräger Polytron 5310 can also be supplied with three integrated relays upon request. This enables you to use it as an independent gas detection system with two adjustable concentration alarms and one fault alarm. Audible alarms, signal lights, or similar devices can thus be controlled locally without an additional cable between the transmitter and central controller.
Her uygulama için güvenli, sağlam gövde

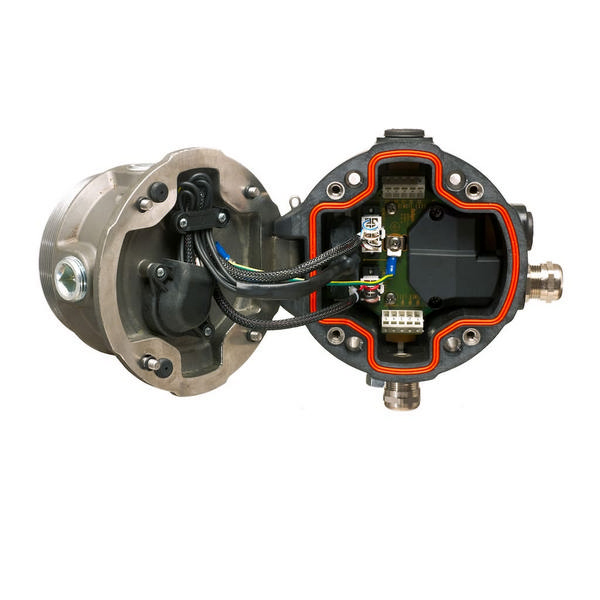

The Polytron 5310 features a Class I, Div. 1 rated explosion proof enclosure made from aluminum or stainless steel, making it suitable for a wide range of environmental conditions. A protection type “e” version includes a convenient docking station that allows installation in hazardous atmospheres without running conduit (where approved) and this also facilitates pre-assembly.
Uzaktan kumanda sensörüyle imkansızı mümkün kılın
Polytron transmitter. The sensor splash guard with integrated tubing nipple enables one person to perform the
full calibration of a remote mounted sensor from the transmitter.
Önemli gerçekler
- Tip
- verici
- Tepki Süresi
- Kablo girişi
- M20 veya 3/4" NPT
- Görüntülemek
- ✓
- İç Güvenlik
- ✗
- aleve dayanıklı
- ✓
- Artan Güvenlik
- ✓
- SIL
- ✗
- 4-20 mA
- ✓
- Otobüs
- ✗
- HART®
- ✗
- Kablosuz
- ✗
Teknik veri
- Güç kaynağı
- 10 to 30 VDC, 3-wire
- Sıcaklık (çalışma)
- -40°C – 65°C
- Nem
- 0 ila 100 % rh, yoğuşmasız
- Baskı yapmak
- 700 – 1300
- Boyutlar (Y × G × D)
- 0.3×0.15×0.13 m
- Ağırlık
- 8.82 lb
- Ev materyalleri
- Epoksi kaplı bakır içermeyen alüminyum veya paslanmaz çelik SS 316L
- Koruma derecesi (IP sınıfı)
- IP65/66/67
Onaylar
- ATEX
- ✓
- IECEx
- ✓
- UL
- ✓
- ÖAM
- ✓
- CE işareti
- ✓
- GOST (EAC)
- ✓
- Performans onayı
- ✓
- nakliye onayı
- ✗
- FM
- ✗
